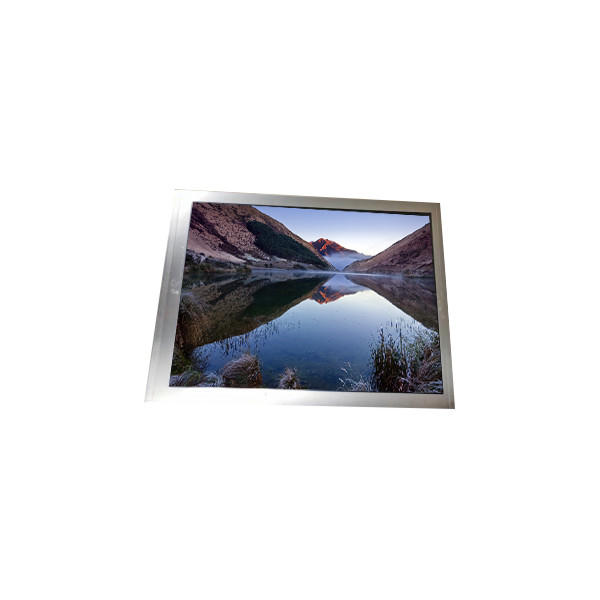

32.0 Inch MV315QHB-N50 tft LCD Display 165Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV315QHB-N50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV315QHB-N50 | Resolution: | 2560(RGB)×1440, Quad-HD 93PPI |
|---|---|---|---|
| Display Size: | 698.112(W)×392.688(H) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Designed For: | Desktop Monitor/Gaming | Display Colors: | 1.07B 99% SRGB |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| View Direction: | Symmetry | Response Time: | 8 (Typ.)(G To G) |
| Highlight: | H020HN01 Mobile Phone LCD display,176x220 resolution Mobile Phone LCD display |
||
Product Description
32.0 Inch MV315QHB-N50 tft LCD Display 165Hz
Product details :
| Brand | BOE |
| Model P/N | MV315QHB-N50 |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 93PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.112(W)×392.688(H) mm |
| Bezel Opening | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Glass Depth | - |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Support Color | 1.07B 99% sRGB |
| Light Source | No B/L |
| Weight | - |
| Designed For | Desktop Monitor/Gaming |
| Frame Rate | 165Hz |
| Touch Panel | Without |
| Interface Type | eDP (8 Lanes) , eDP1.4 , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Drive plate specification
HDMIturnMIPI
USB 5Vpower supply,support4Kresolving power
supportPCAnd raspberry pie
Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
FAQ
Q: What happen if the lcd panel MV315QHB-N50 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about MV315QHB-N50 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order MV315QHB-N50 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order MV315QHB-N50 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
