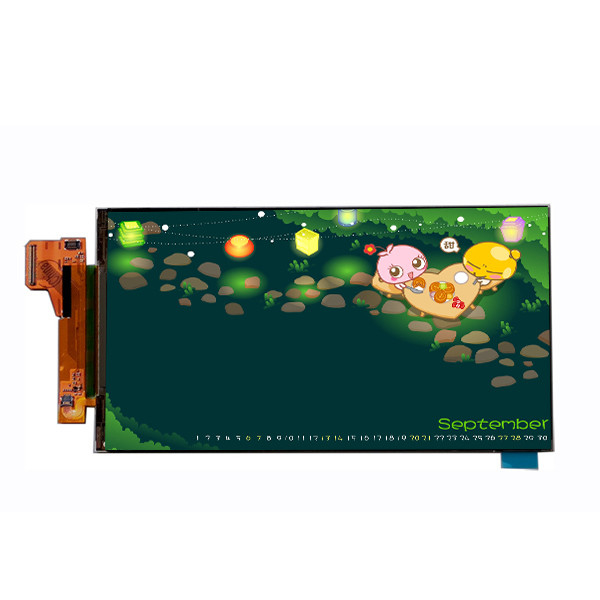

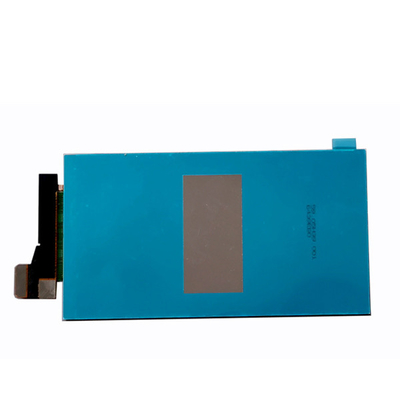

H546UAN01.0 LCD Screen Display Panel 5.5 Inch UHD 658PPI For Mobile Phone HMD VR AR
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H546UAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H546UAN01.0 | Resolution: | 2160(RG/BR/GB)×3840, UHD, 658PPI |
|---|---|---|---|
| Display Size: | 68.04(W)×120.96(H) Mm | Viewing Angle: | 70/70/70/70 (Typ.)(CR≥100) |
| Designed For: | Mobile Phone HMD VR AR | Display Colors: | 16.7M 94% NTSC |
| High Light: | UHD 658PPI LCD Screen Display Panel,H546UAN01.0 LCD Screen Display Panel,VR AR LCD Screen Display Panel |
||
Product Description
5.5 inch H546UAN01.0 2160*3840 UHD, 658PPI for Mobile Phone HMD VR AR
Product details :
| AUO LCD SCREEN H546UAN01.0 | |
| Panel Brand | AUO |
| Panel Model | H546UAN01.0 |
| Panel Size | 5.5" |
| Panel Type | LTPS TFT-LCD , LCM |
| Resolution | 2160(RG/BR/GB)×3840, UHD, 658PPI |
| Pixel Format | Rainbow-RGB |
| Display Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | 68.64(W)×121.56(H) mm |
| Outline Size | 69.84(W)×128.86(H) ×1.38(D) mm |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥100) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Rainbow-RGB |
| Used for | Mobile Phone HMD VR AR |
| Display Colors | 16.7M 94% NTSC |
| Lamp Type | 6S3P WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Mass | TBD |
| Signal Interface | MIPI (2 ch, 4 data lanes) , 60 pins Connector |
| Input Voltage | 1.85/1.35V (Typ.)(DVDD/VDDI) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -55 ~ 125 °C |
| 5.5 inch H546UAN01.0 2160*3840 UHD, 658PPI for Mobile Phone HMD VR AR | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Drive plate specification:
HDMIturnMIPI
USB 5Vpower supply,support4Kresolving power
supportPCAnd raspberry pie
FAQ:
Q: Can you test the lcd panel H546UAN01.0 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order H546UAN01.0 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order H546UAN01.0 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd H546UAN01.0?
A: 90 days .
Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
