Name: Industrial 24inch AUO Display Panels G240HW01 V1 30 Pins LVDS Interface
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G240HW01 V1
Availability: InStock

Brand Name:	AUO
Model Number:	G240HW01 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G240HW01 V1

Resolution:

1920(RGB)×1080, FHD, 91PPI

Display Size:

531.36(W)×298.89(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Designed For:

Industrial

Frequency:

60Hz

Supply Ability:

100000 Unit/Units per Month

Highlight:

24inch AUO Display panels

G240HW01 V1 AUO Display panels

LVDS Interface AUO Display panels

Product Description

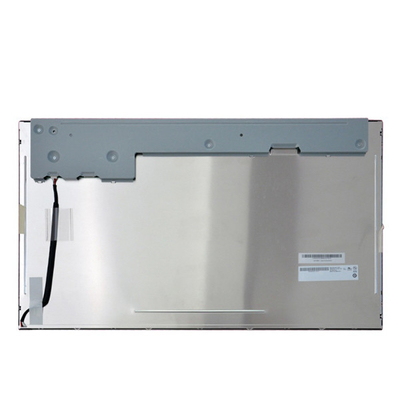

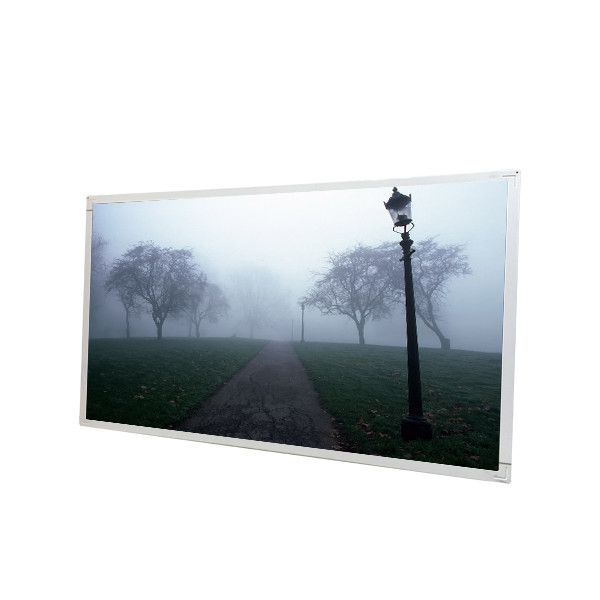

AUO Display panels G240HW01 V1 24inch 30 pins LVDS Interface

Product details :

AUO LCD SCREEN G240HW01 V1
Panel Brand	AUO
Panel Model	G240HW01 V1
Panel Size	24.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 91PPI
Pixel Format	RGB Vertical Stripe
Display Area	531.36(W)×298.89(H) mm
Bezel Opening	535.36(W)×302.89(H) mm
Outline Size	556(W)×323.2(H) ×17(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	5000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AMVA3, Normally Black, Transmissive
Best View on	Symmetry
Response Time	16/9 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	10S7P WLED , 50K hours , With LED Driver
Frequency	60Hz
Designed For	Industrial
Touch Screen	Without
Panel Weight	2.30±0.2Kgs
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
AUO Display panels G240HW01 V1 24inch 30 pins LVDS Interface

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Product Description:

1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.

2: Full Tested 100% Working By Real equipment before Shipping

3: Not supply the disassembly installation instructions and Tools

4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm

FAQ

Q: If I place order now,when will you ship the goods of G240HW01 V1?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of G240HW01 V1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of G240HW01 V1 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of G240HW01 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Shipping and Package :

Industrial 24inch AUO Display Panels G240HW01 V1 30 Pins LVDS Interface 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
