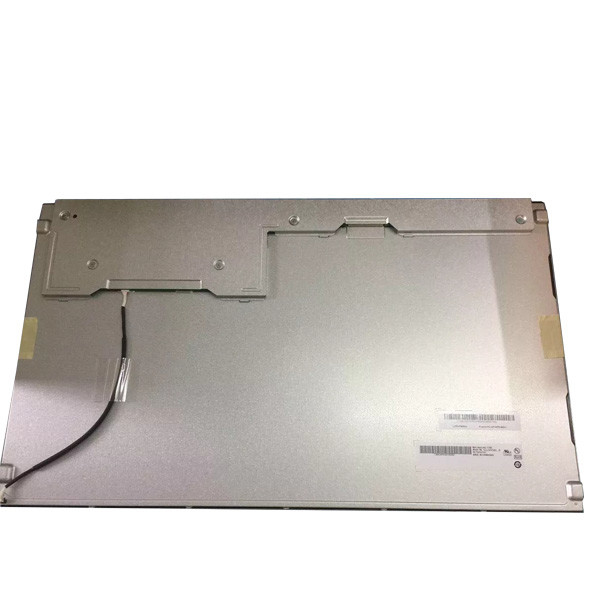

• G215HVN01.3 IPS TFT LCD Panel High Brightness 1000 Nits 21.5 Inch 1920x1080 AUO Screen
G215HVN01.3 IPS TFT LCD Panel High Brightness 1000 Nits 21.5 Inch 1920x1080 AUO Screen

G215HVN01.3 IPS TFT LCD Panel High Brightness 1000 Nits 21.5 Inch 1920x1080 AUO Screen

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: G215HVN01.3

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: G215HVN01.3 Resolution: 1920(RGB)×1080, FHD, 102PPI
Display Size: 476.64(W)×268.11(H) Mm Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Designed For: Industrial Frequency: 60Hz
High Light:

21.5 inch IPS tft lcd panel

,

1000 nits IPS tft lcd panel

,

AUO screen IPS tft lcd panel

Product Description

High-quality AUO screen 21.5 inch 1920*1080 G215HVN01.3





Product details :

AUO LCD SCREEN G215HVN01.3
Panel Brand AUO
Panel Model G215HVN01.3
Panel Size 21.5"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD, 102PPI
Pixel Format RGB Vertical Stripe
Display Area 476.64(W)×268.11(H) mm
Bezel Opening 479.84(W)×271.31(H) mm
Outline Size 495.6(W)×292.2(H) ×23.5(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 5000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode VA, Normally Black, Transmissive
Best View on Symmetry
Response Time 20/5 (Typ.)(Tr/Td)
Display Colors 16.7M 72% NTSC
Lamp Type 18S4P×2CN WLED , 50K hours , With LED Driver
Frequency 60Hz
Touch Screen Without
Designed For Industrial
Panel Weight 1.85±0.19Kgs
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High-quality AUO screen 21.5 inch 1920*1080 G215HVN01.3 with IPS tft lcd panel with high brightness 1000 nits

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !





About shipping method:




Due to the continuous impact of theepidemic, the logistics time limit is unstable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer.



Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need specified logistics, please tell us in advance.



FAQ:

Q: How to order AUO lcd panel G215HVN01.3 ?

A: We accept the T/T , Western union , paypal .



Q: How long the warranty of G215HVN01.3 ?

A: 90days.



Q: What happen if the G215HVN01.3 I received can't work ?

A: our AUO A025CN01 Ver.3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.



Q: can you declared low price of my 21.5 inch TFT-LCD G215HVN01.33 when shipping?

A: Yes , please inform us the value you want .





Shipping and Package :

G215HVN01.3 IPS TFT LCD Panel High Brightness 1000 Nits 21.5 Inch 1920x1080 AUO Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
