1920x1080 TFT LCD Panel Screen Display G215HAN01.501 For Industrial Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G215HAN01.501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G215HAN01.501 | Resolution: | 1920(RGB)×1080, FHD, 102PPI |
|---|---|---|---|
| Display Size: | 476.064(W)×267.786(H) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Designed For: | Industrial Medical Imaging | Frequency: | 60Hz |
| High Light: | 1920x1080 LCD Panel Screen Display,TFT LCD Panel Screen Display |
||
Product Description

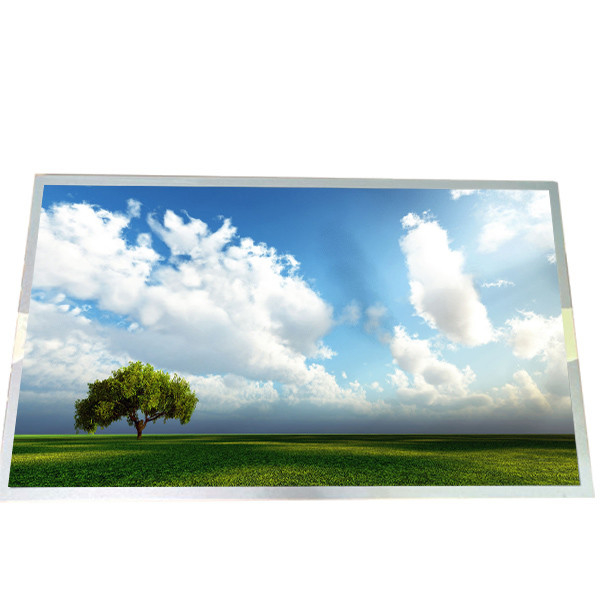

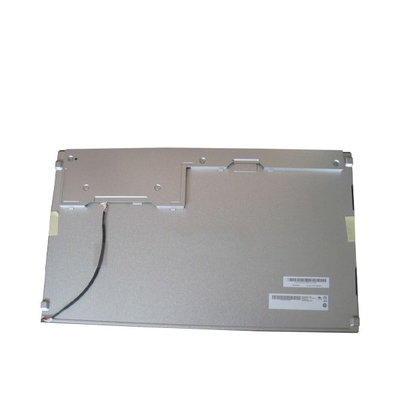

G215HAN01.501 1920x1080 TFT LCD Panel Screen Display
Product details :
| AUO LCD SCREEN G215HAN01.501 | |
| Panel Brand | AUO |
| Panel Model | G215HAN01.501 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline Size | 497.6(W)×292.2(H) ×11.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/10 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 16S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Industrial Medical Imaging |
| Panel Weight | 1.74Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| G215HAN01.501 1920x1080 TFT LCD Panel Screen Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
PAYMENT TERMS:
We accept Bank transfer/western union/ paypal/Escrow /Alibaba Trade Assurance .
Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
FAQ:
Q: If I order G215HAN01.501 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G215HAN01.501 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of G215HAN01.501 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of G215HAN01.501 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
