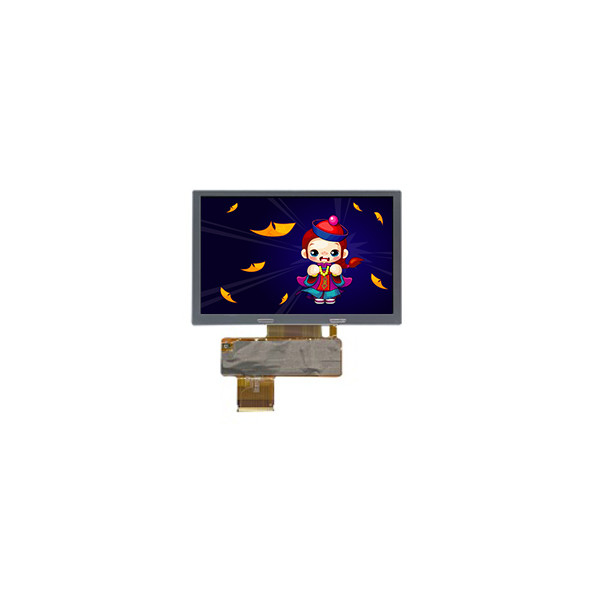

5.9 Inch TM059YDH04 480*800 LCD Panel Display Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM059YDH04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM059YDH04 | Diagonal Size: | 5.9" |
|---|---|---|---|
| Resolution: | 480(RGB)×800, WVGA 158PPI | Active Area: | 74.88(W)×129.24(H) Mm |
| Bezel Opening: | 75.88(W)×130.24(H) Mm | Outline Size: | 84.28(W)×143.94(H)×3(D) Mm |
| Contrast Ratio: | 500 : 1 (Typ.) (TM) | Application: | Mobile Phone |
| Voltage Supply: | 1.8/2.8V (Typ.)(IOVCC/VCI) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | 4.3 inch Industrial LCD Panel Display,DMF660N Industrial LCD Panel Display,Monochrome Industrial LCD Panel Display |
||
Product Description
5.9 Inch TM059YDH04 480*800 LCD Panel Display Display
Product details :
| Brand | TIANMA |
| Model P/N | TM059YDH04 |
| Diagonal Size | 5.9" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×800, WVGA 158PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.88(W)×129.24(H) mm |
| Bezel Opening | 75.88(W)×130.24(H) mm |
| Outline Size | 84.28(W)×143.94(H)×3(D) mm |
| Treatment | Antiglare |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | 6S2PWLED, No Driver |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 data lanes), 25 pinsFPC |
| Voltage Supply | 1.8/2.8V (Typ.)(IOVCC/VCI) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Refund / Return:
We do our best to provide the best service to our customers.
If you return the item for any reason within 7 days of receipt, we will issue a refund to you, but the buyer should ensure that the returned item is in its original condition. If the item is damaged or lost on return, the buyer will be responsible for the damage or loss and we will not give the buyer a full refund. The buyer should attempt to file a claim with the logistics company to recover the damage or loss.
The buyer will be responsible for the shipping cost of the return.
FAQ:
Q: How can I trace my order of TM059YDH04 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TM059YDH04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TM059YDH04 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TM059YDH04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
