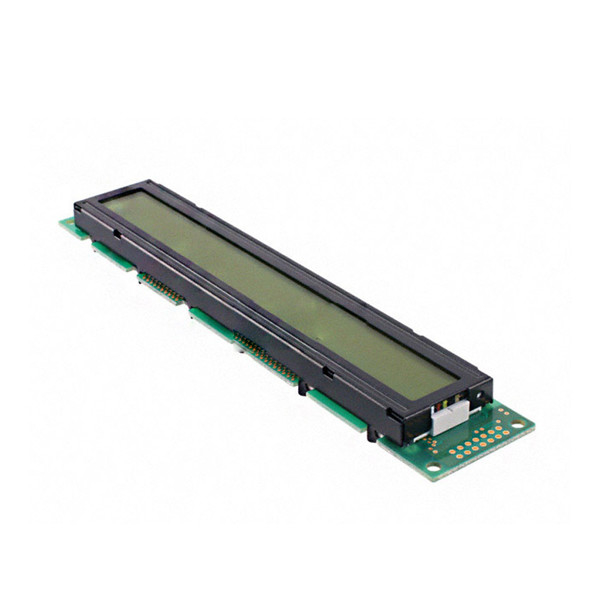

• 5.8 Inch STN LCD Screen Display Panel DMC-40202NY-LY-AZE-BDN 5×8 Dots
5.8 Inch STN LCD Screen Display Panel DMC-40202NY-LY-AZE-BDN 5×8 Dots

5.8 Inch STN LCD Screen Display Panel DMC-40202NY-LY-AZE-BDN 5×8 Dots

Product Details:

Place of Origin: China
Brand Name: Kyocera
Model Number: DMC-40202NY-LY-AZE-BDN

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: DMC-40202NY-LY-AZE-BDN Diagonal Size: 5.8 Inch
Panel Type: STN-LCD , LCM Character Size: 3.2×5.55(W×H) Mm
Character Pitch: 3.7×5.95(W×H) Mm Outline Size: 182(W)×34.5(H) ×15.1(D) Mm
Display Area: 147.5(W)×11.5(H) Mm Bezel Opening: 152.5(W)×16.5(H) Mm
High Light:

STN LCD Screen Display Panel


LCD Screen Display Panel 5.8 inch


5×8 Dots LCD Screen Display Panel

Product Description

DMC-40202NY-LY-AZE-BDN 5.8 inch LCD Screen Display Panel



Product details :

Kyocera LCD Screen DMC-40202NY-LY-AZE-BDN
Panel Brand Kyocera
Panel Model DMC-40202NY-LY-AZE-BDN
Panel Size 5.8 inches
Panel Type LCM, STN-LCD
Resolution 40 characters × 2 lines 6PPI
Char Format 5×8 dots
Font Size 3.2×5.55 mm
Font Pitch 3.7×5.95 mm
Active Area 147.5(H)×11.5(V) mm
Outline Dim. 182(H)×34.5(V) ×15.1(D) mm
Bezel Area 152.5(H)×16.5(V) mm
Contrast Ratio 12:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 130/180 (Typ.)(Tr/Td)
Viewing Angle 35/40/50/50 (Typ.)(CR≥2)
Operating Mode STN, Yellow/Green (Positive), Transmissive
Support Color Monochrome
Light Source YG-LED [2S25P] , W/O Driver
Weight 80.0g (Max.)
Designed For Instruments & Meters
Touch Panel Without
Interface Type 8-bit parallel , 14 pins Pad
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C
DMC-40202NY-LY-AZE-BDN 5.8 inch LCD Screen Display Panel

Product type:


We provide excellent industrial LCD products. Maybe the pictures and goods you take do not conform to the LOGO. It may be due to product upgrades or other reasons, but the product information is completely consistent with the electrical performance and mechanical performance failure. Please notify the customer in time, please understand! The product will not affect your use. Display Color Mismatch: Slight deviation in LCD module color can be caused by many other reasons, such as display color reflection, lighting, background, etc. However, if you believe you have received an item in the wrong color, please contact us to see if you can return or refund it.


Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !




Q: Can you give me a discount if I need a large quantity of DMC-40202NY-LY-AZE-BDN ?

A: Of course!If you make a large order, we will give you a discount.


Q: How can I trace my order of DMC-40202NY-LY-AZE-BDN ?

A: we will give you tracking number then you can trace your order from website.


Q: How long is the warranty ?

A: We offer 90 days warranty .


Q: Can I pay my order of DMC-40202NY-LY-AZE-BDN via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Shipping and Package :

5.8 Inch STN LCD Screen Display Panel DMC-40202NY-LY-AZE-BDN 5×8 Dots 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
