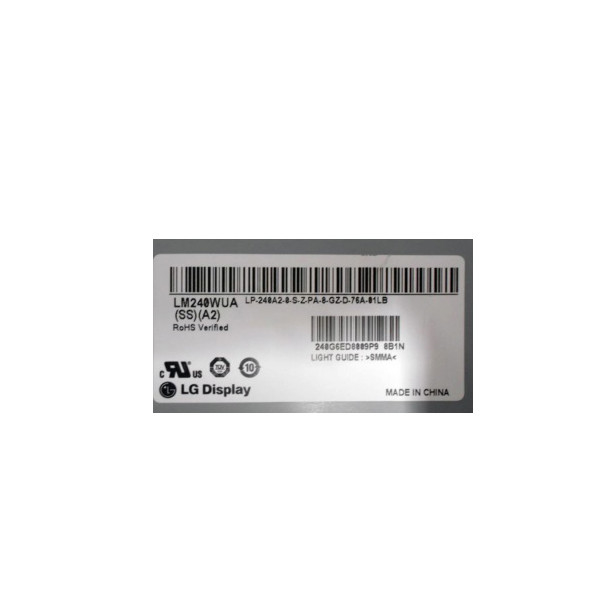

24.0 Inch LM240WUA-SSA2 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM240WUA-SSA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM240WUA-SSA2 | Diagonal Size: | 24.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 94PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 518.4(W)×324(H) Mm |
| Designed For: | Desktop Monitor、Industrial | Lamp Type: | 13S4P WLED , 30K Hours , Without Driver |
| Highlight: | 20 characters X 2 lines LCD Screen Display Panel,3inch LCD Screen Display Panel |
||
Product Description
24.0 Inch LM240WUA-SSA2 LCD Screen Display Panel
Product details :
| Brand | LG Display |
| Model P/N | LM240WUA-SSA2 |
| Diagonal Size | 24.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 518.4(W)×324(H) mm |
| Bezel Opening | - |
| Outline Size | 528.2(W)×342.6(H)×13.5(D) mm |
| Brightness | 300 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 100%NTSC |
| Frequency | 60Hz |
| Weight | 2.45/2.60Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | 13S4P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor,Industrial |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 10.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
About shipping:
We will send the package within 24 hours after buyer's payment is confirmed. Send items with online tracking, tracking information is available within 5-10 days.
Warranty:
We promise quality warranty within one year, and we will repair it for free. Return shipping should be paid by the customer. Received the old item, I will send the new item immediately.
FAQ
Q: How can I trace my order of LM240WUA-SSA2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LM240WUA-SSA2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LM240WUA-SSA2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LM240WUA-SSA2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
