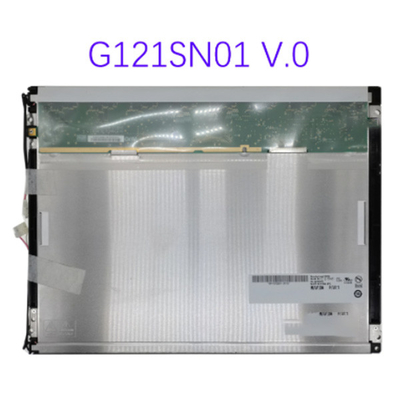

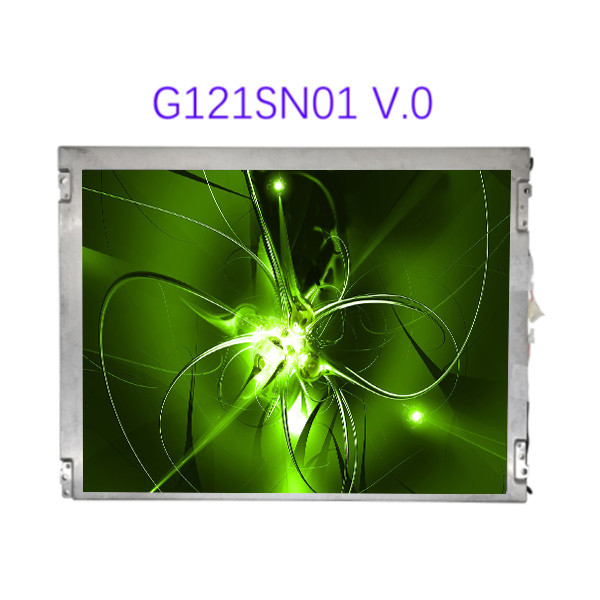

NEW Original G121SN01 V0 12.1 Inch LCD Panel VGA Controller Board
|Place of Origin:||China|
|Model Number:||G121SN01 V0|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging/conventional packaging box|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Model Name:||G121SN01 V0||Resolution:||800(RGB)×600, SVGA, 82PPI|
|Display Size:||246(W)×184.5(H) Mm||Bezel Opening:||249.05(W)×188.3(H) Mm|
|Outline Size:||279(W)×209(H) ×9(D) Mm||Viewing Angle:||70/70/60/50 (Typ.)(CR≥10)|
A-Si TFT LCD Panel,
NEW Original 12.1 Inch LCD Panel,
VGA Controller Board LCD Panel
C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO
Product details :
|AUO LCD SCREEN G121SN01 V0|
|Panel Model||G121SN01 V0|
|Panel Type||a-Si TFT-LCD , LCM|
|Resolution||800(RGB)×600, SVGA, 82PPI|
|Pixel Format||RGB Vertical Stripe|
|Display Area||246(W)×184.5(H) mm|
|Bezel Opening||249.05(W)×188.3(H) mm|
|Outline Size||279(W)×209(H) ×9(D) mm|
|Surface||Glare (Haze 0%), Hard coating (3H)|
|Brightness||400 cd/m² (Typ.)|
|Contrast Ratio||500:1 (Typ.) (TM)|
|Viewing Angle||70/70/60/50 (Typ.)(CR≥10)|
|Display Mode||TN, Normally White, Transmissive|
|Best View on||-|
|Response Time||10/25 (Typ.)(Tr/Td)|
|Display Colors||262K 59% NTSC|
|Lamp Type||2 pcs CCFL , 50K hours , Without Driver|
|Panel Weight||660g (Typ.)|
|Signal Interface||LVDS (1 ch, 6/8-bit) , 20 pins Connector|
|Input Voltage||3.3V (Typ.)|
|Environment||Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C|
|NEW original G121SN01 V0 G121SN01 V.0 12.1 inch LCD Panel LCD screen led lcd VGA controller board|
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1.Before installing the LCD screen, please turn off the power first, unplug the screen cable, and turn on the power after all the installation work is completed.
2.All panels will be sent out after strict testing to ensure that you can install them directly after receiving them.
3.Please check the specific information of the Panel, we will ensure that the issued panel is fully compatible, if you are not sure about your specific panel, please send us the panel picture on your current machine to confirm, we will reply you as soon as possible.
4.If you are a professional and know the panel model you need, you can directly place an order to buy.
Q: Do you accept sample orders of G121SN01 V0 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of G121SN01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of G121SN01 V0 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of G121SN01 V0 ?
A: we will give you tracking number then you can trace your order from website.
