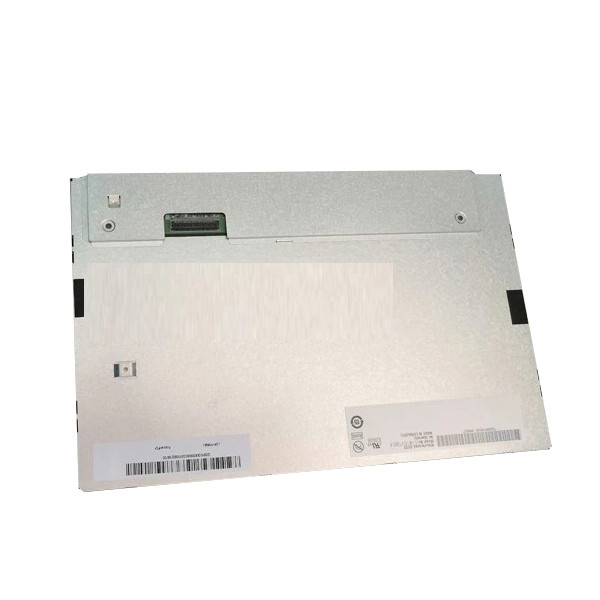

• G101EVT05.1 10.1 Inch Original TFT LCD Display Module LCD Screen Panel
G101EVT05.1 10.1 Inch Original TFT LCD Display Module LCD Screen Panel

G101EVT05.1 10.1 Inch Original TFT LCD Display Module LCD Screen Panel

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: G101EVT05.1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: G101EVT05.1 Resolution: 1280(RGB)×800 [WXGA] 149PPI
Display Size: 216.96 × 135.6 (H×V)mm Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Used For: Industrial Touch Screen: Without
Outline Size: 257.35 × 175.5 (H×V×D)mm Brightness: 440 Cd/m² (Typ.)
High Light:

10.1 Inch TFT LCD Display Module


Industrial Original LCD Display Module


G101EVT05.1 TFT LCD Screen Panel

Product Description

C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO



Product details :

Panel Brand AUO
Panel Model G101EVT05.1
Panel Size 10.1"
Panel Type LCM, a-Si TFT-LCD
Resolution 1280(RGB)×800 [WXGA] 149PPI
Pixel Format RGB vertical bar
Display Area 216.96 × 135.6 (H×V)mm
Outline Size 257.35 × 175.5 (H×V×D)mm
Surface Antiglare (Haze 3%), Hard coating (3H), Reflection
Brightness 440 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Display Mode MVA, normally black display, transmissive
Best View on Symmetry
Response Time 25 (Typ.)(Tr+Td) ms
Display Colors 262K/16.2M, 47% NTSC
Lamp Type WLED, 50K hours, with LED driver
Frequency 60Hz
Touch Screen PCAP
Panel Weight 350g (Max.)
Application Industrial
Signal Interface LVDS (1 ch, 6/8-bit), connector, 40 pins
Input Voltage 3.3V (Typ.)
Environment Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C
G101EVT05.1 10.1 inch Original TFT LCD display module LCD screen panel fast delivery in stock

Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !


Shipping and Package :



G101EVT05.1 10.1 Inch Original TFT LCD Display Module LCD Screen Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.




Customer satisfied is very important to us,If you are satisfied with the items you orderd,please leave feedback.If not,please contact us first..We can work together to resolve any dispute



Q: Can you give me a discount if I need a large quantity of G101EVT05.1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of G101EVT05.1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of G101EVT05.1 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .

Want to Know more details about this product
I am interested in G101EVT05.1 10.1 Inch Original TFT LCD Display Module LCD Screen Panel could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
