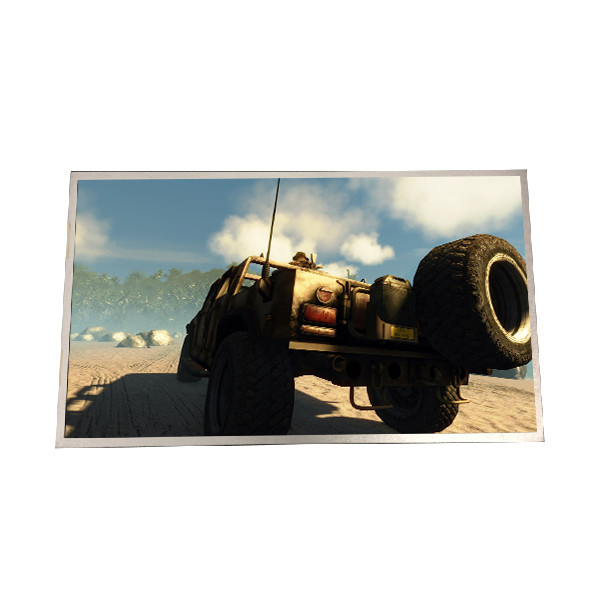

• G080UAN02.1 8.0" 1200*1920 IPS Tft Display Module For Industry
G080UAN02.1 8.0" 1200*1920 IPS Tft Display Module For Industry

G080UAN02.1 8.0" 1200*1920 IPS Tft Display Module For Industry

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: G080UAN02.1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: G080UAN02.1 Resolution: 1200(RGB)×1920 (WUXGA) 283PPI
Display Size: 107.64 × 172.224 (H×V) Mm Outline Size: 114.6 × 184.125 × 3.95 (H×V×D) Mm
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Used For: Industrial
Touch Screen: Without Display Mode: AHVA, Normally Black Display, Transmissive
High Light:

1200*1920 Tft Display Module


Industry IPS Tft Display Module


8.0" Industry display lcd tft

Product Description

C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO



Product details :

Panel Brand AUO
Panel Model G080UAN02.1
Panel Size 8.0"
Panel Type LCM, a-Si TFT-LCD
Resolution 1200(RGB)×1920 (WUXGA) 283PPI
Pixel Format RGB vertical bar
Display Area 107.64 × 172.224 (H×V) mm
Outline Size 114.6 × 184.125 × 3.95 (H×V×D) mm
Treatment Glare (Haze 0%)
Brightness 390 cd/m² (Typ.)
Contrast Ratio 1000: 1 (Typ.) (transmission)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode AHVA, normally black display, transmissive
Good View at Symmetry
Response Time 25 (Typ.)(Tr+Tf) ms
Display Colors 16.7M, 60% NTSC
Lamp Type 8S4P WLED, 15K hours, without driver
Frequency 60Hz
Touch Screen Without
Used for Industrial
Signal Interface MIPI (4 data lanes), connector, 51 pins
Input Voltage 3.3V (Typ.)
Environment Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C
AUO display G080UAN02.1 8 inch 1200*1920 with IPS tft lcd panel for Industry

Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !


Shipping and Package :



G080UAN02.1 8.0" 1200*1920 IPS Tft Display Module For Industry 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



Customer satisfied is very important to us,If you are satisfied with the items you orderd,please leave feedback.If not,please contact us first..We can work together to resolve any dispute



Q: Can you test the lcd panel G080UAN02.1 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .


Q: Do you accept the sample order G080UAN02.1?

A: Yes , sample order is welcome.


Q: Can you declared low value of my order BG080UAN02.1?

A: Yes , we can , you can tell us before shipping .


Q: How long the warranty of lcd G080UAN02.1 ?

A: 90 days .
