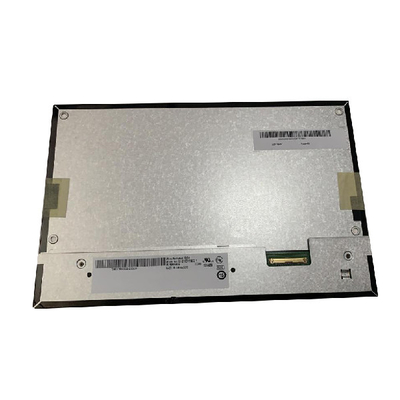

G101EVN03.1 Original 10.1 inch LVDS 40 pin IPS display tft lcd panel with 1000nits sunlight readable
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging/conventional packaging box|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Model Name:||G101EVN03.1||Resolution:||1280(RGB)×800 [WXGA] 149PPI|
|Display Size:||216.96 × 135.6 (H×V)mm||Brightness:||1000 Cd/m² (Typ.)|
|Outline Size:||227.69(W)×148.31(H) ×7.75(D) Mm||Viewing Angle:||85/85/85/85 (Typ.)(CR≥10)|
|Designed For:||Industrial Outdoor High Brightness||Touchscreen:||Without|
C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO
Product details :
|AUO LCD SCREEN G101EVN03.1|
|Panel Type||LCM, a-Si TFT-LCD|
|Resolution||1280(RGB)×800 [WXGA] 149PPI|
|Pixel Format||RGB vertical bar|
|Display Area||216.96 × 135.6 (H×V)mm|
|Outline Size||227.69(W)×148.31(H) ×7.75(D) mm|
|Surface||Mirror (Haze 0%)|
|Brightness||1000 cd/m² (Typ.)|
|Contrast Ratio||1300:1 (Typ.) (TM)|
|Viewing Angle||85/85/85/85 (Typ.)(CR≥10)|
|Display Mode||MVA, normally black display, transmissive|
|Best View on||Symmetry|
|Response Time||25 (Typ.)(Tr+Td) ms|
|Display Colors||262K/16.2M, 45% NTSC|
|Lamp Type||WLED, 50K hours, no driver|
|Application||Industrial Outdoor High Brightness|

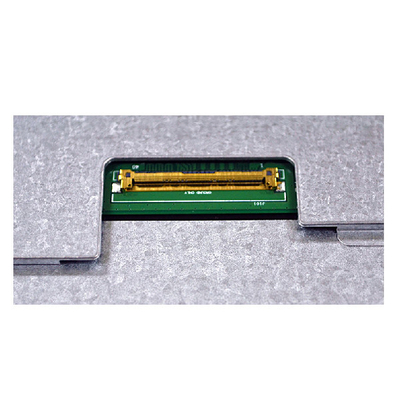

|Signal Interface||LVDS (1 ch, 6/8-bit), 40 pins, connector|
|Input Voltage||3.3V (Typ.)|
|Environment||Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C|
|G101EVN03.1 Original 10.1 inch LVDS 40 pin IPS display tft lcd panel with 1000nits sunlight readable|
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
We have been engaged in LCD/LED screen product sales for many years.
We offer many brands and variety models of LCD/LED screen.
As a company, we are organized around best-known brands:
SHARP, MITSUBSHI, NEC, OPTREX, KYOCERA,AUO, CMO, INNOLUX,Samsung, LG-Philps
Products are widely used for Car GPS,Handheld devices,Industrial screen,tablet,laptop,Monitor etc
All the screen are original grade A.
100% test before delivery.
We will be your good choice.
If you have any questions,please leave messages on AliExpress.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of G101EVN03.1 ?
A: Generally speaking ,It will take1-3days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for G101EVN03.1 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of G101EVN03.1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
