Industrial LCD Panel Display

Free viewing angle 10.1 inch 1280*800 40 pins LVDS connector lcd support design touch for industrial

All Category

Floor Standing Digital Signage

Free viewing angle 10.1 inch 1280*800 40 pins LVDS connector lcd support design touch for industrial

Brand Name:	AUO
Model Number:	G101EVN01 V001
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G101EVN01 V001

Resolution:

1280(RGB)×800 [WXGA] 149PPI

Display Size:

216.96 × 135.6 (H×V)mm

Bezel Opening:

220.36(W)×139.1(H) Mm

Outline Size:

229.47 × 149.18 × 4.96 Mm (H×V×D)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Designed For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO

Product details :

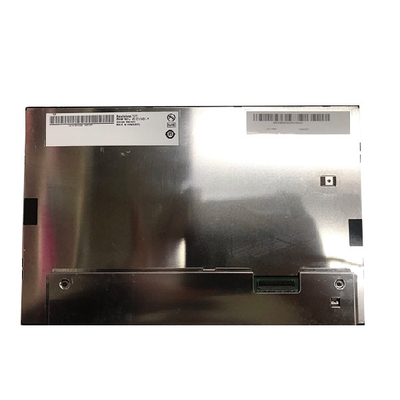

AUO LCD SCREEN G101EVN01 V001
Panel Brand	AUO
Panel Model	G101EVN01 V001
Panel Size	10.1"
Panel Type	LCM, a-Si TFT-LCD
Resolution	1280(RGB)×800 [WXGA] 149PPI
Pixel Format	RGB vertical bar
Display Area	216.96 × 135.6 (H×V)mm
Bezel Opening	220.36(W)×139.1(H) mm
Outline Size	229.47 × 149.18 × 4.96 mm (H×V×D)
Surface	Hard coating, reflectivity 1.5% (Max.)
Brightness	400 (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	MVA, normally black display, transmissive
Response Time	25 (Typ.)(Tr+Td) ms
Display Colors	262K, 45% NTSC
Lamp Type	WLED, 25K hours, with LED driver
Frequency	60Hz
Designed For	Industrial
Touch Screen	Without
Panel Weight	187g (Max.)
Signal Interface	LVDS (1 ch, 6/8-bit), 40 pins, connector
Input Voltage	3.3V (Typ.)
Environment	Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C
Free viewing angle 10.1 inch 1280*800 40 pins LVDS connector lcd support design touch for industrial

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Free viewing angle 10.1 inch 1280*800 40 pins LVDS connector lcd support design touch for industrial 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Helpful Information:

To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.

FAQ

Q: How to order AUO G101EVN01 V001 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will ship my order of G101EVN01 V001 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 2.4 inch lcd panel G101EVN01 V001 before shipping?

A: Don't Worry , Our AUO lcd G101EVN01 V001 was tested ok before shipping

Q: Can you declared low value for my order lcd panel G101EVN01 V001 ?

A: Yes we can , but you need to leave message to us before shipping .
