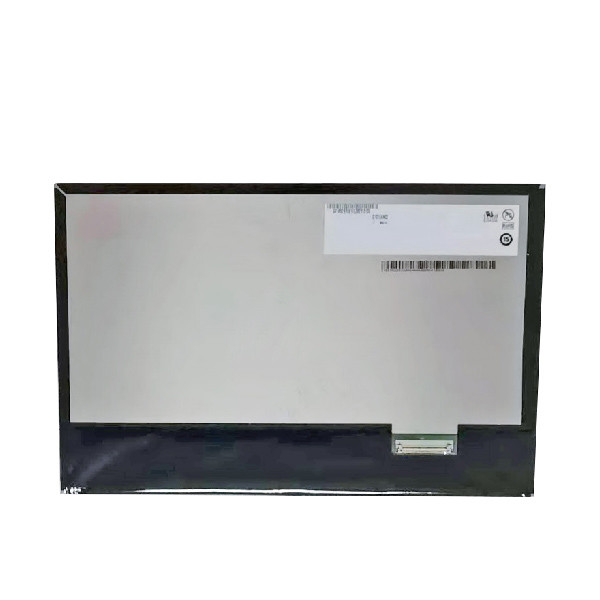

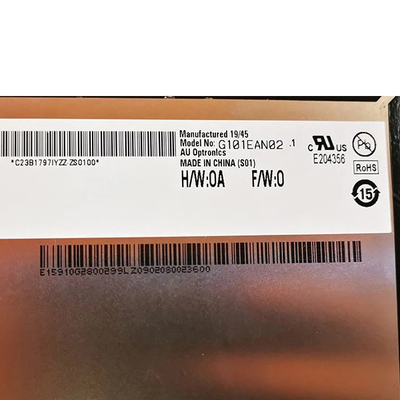

G101EAN02.1 10.1 inch IPS lcd module with capacitive touch tft lcd display module
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Original packaging/conventional packaging box|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100000 Unit/Units per Month|
|Model Name:||G101EAN02.1||Resolution:||1280(RGB)×800 [WXGA] 149PPI|
|Display Size:||216.96 × 135.6 (H×V)mm||Contrast Ratio:||800:1 (Typ.) (TM)|
|Outline Size:||227.72(W)×147.8(H) ×4.8(D) Mm||Viewing Angle:||89/89/89/89 (Typ.)(CR≥10)|
C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO
Product details :
|AUO LCD SCREEN G101EAN02.1|
|Panel Type||LCM, a-Si TFT-LCD|
|Resolution||1280(RGB)×800 [WXGA] 149PPI|
|Pixel Format||RGB Vertical Stripe|
|Display Area||216.96 × 135.6 (H×V)mm|
|Outline Size||227.72(W)×147.8(H) ×4.8(D) mm|
|Contrast Ratio||800:1 (Typ.) (TM)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)|
|Display Mode||AHVA, normally black display, transmissive|
|Good View at||Symmetry|
|Response Time||29 (Typ.)(Tr+Td) ms|
|Display Colors||16.7M, 50% NTSC|
|Lamp Type||WLED, 30K hours, with LED driver|
|Panel Weight||195g (Max.)|
|Signal Interface||LVDS (1 ch,8-bit), 40 pins, connector|
|Input Voltage||3.3V (Typ.)|
|Environment||Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C|
|G101EAN02.1 10.1 inch IPS lcd module with capacitive touch tft lcd display module|
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
The panel will be 100% check and test before shippment.
We will handle your order within 1-3 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
Q: How to make payment of G101EAN02.1 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of G101EAN02.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of G101EAN02.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of G101EAN02.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
