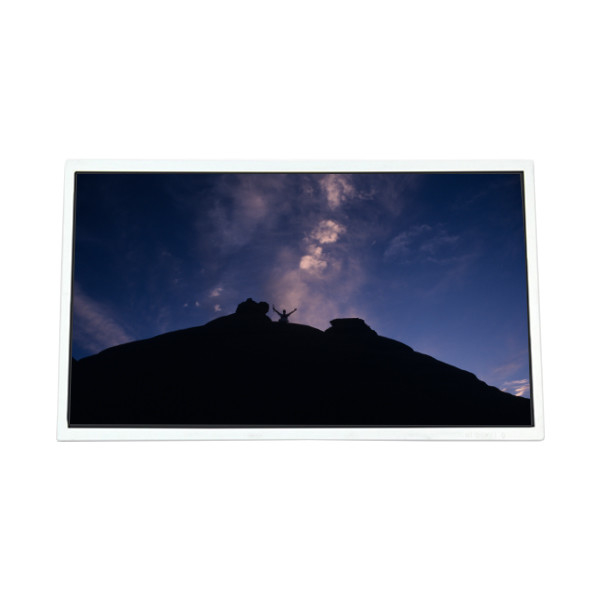

23.8 LCD Screen Display Panel MV238FHM-N01
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N01 | Screen Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area(mm): | 527.04(W)×296.46(H) Mm |
| Brightness: | 250 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Application: | Desktop Monitor |
| Highlight: | 16 pins Pad 6PPI tft lcd panel,5×8 dots 3.0'' tft lcd panel,tft lcd panel C-51505NFQJ-LG-AKN |
||
Product Description
23.8 LCD Screen Display Panel MV238FHM-N01
Product details :
| Brand | BOE |
| Model P/N | MV238FHM-N01 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Before ordering:
★ Please double check your model, screen size and part number.
★ If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen.
★ Usually the LCD panel we send is a compatible model, it may not be exactly the same as your original screen model. But we can make sure it fits the model 100%. (If it is a generic model, we will inform you in advance)
★ All LCD monitors will be tested before shipment.
★ If you have any questions, please leave us a message, we will solve it for you as soon as possible.
★ Your satisfaction is our goal
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of MV238FHM-N01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of MV238FHM-N01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of MV238FHM-N01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
