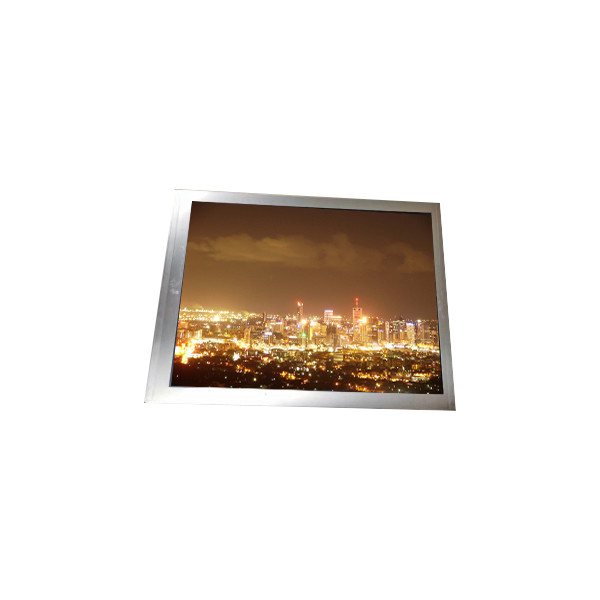

MV215FHM-A20 21.5 inch lcd display For Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV215FHM-A20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV215FHM-A20 | Screen Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 476.064(W)×267.786(H) Mm |
| Bezel Opening: | 479.3(W)×271(H) Mm | Outline Dim.: | 489.3(W)×287(H)×13.3(D) Mm |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Response Time: | 14 (Typ.)(G To G) Ms |
| Highlight: | Kyocera lcd display board 3.0'',Instruments Meters lcd display board,C-51505NFJ-SLW-APN lcd display board |
||
Product Description
MV215FHM-A20 21.5 inch lcd display For Desktop Monitor
Product details :
| Brand | BOE |
| Model P/N | MV215FHM-A20 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.064(W)×267.786(H) mm |
| Bezel Opening | 479.3(W)×271(H) mm |
| Outline Dim. | 489.3(W)×287(H)×13.3(D) mm |
| Treatment | Hard coating (7H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | 17S4P WLED , 30K hours , No Driver |
| Weight | 1.84Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | PCAP, Air Bonding, USB |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Question?
If you want to speak with our customer service representative about how to install this part or general question about this item, feel free to contact us by leaving your name, phone number, and question to our Email address . Our customer service department will contact you within 24 hours.
FAQ:
Q: How to make payment of MV215FHM-A20 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of MV215FHM-A20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of MV215FHM-A20 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of MV215FHM-A20 ?
A: Of course!sample order is welcome !
