products details

Home > Products >

Industrial LCD Panel Display

33 pins CMOS 5.7 inch 320*240 WLED 400nits TFT modules with driver board G057QN01 V0 LCD display

All Category

Floor Standing Digital Signage

33 pins CMOS 5.7 inch 320*240 WLED 400nits TFT modules with driver board G057QN01 V0 LCD display

Brand Name:	AUO
Model Number:	G057QN01 V0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G057QN01 V0

Screen Size:

5.7 Inch

Resolution:

320(RGB)×240, QVGA, 70PPI

Bezel Area(mm:

115.2(W)×86.4(H) Mm

Outline Size:

144(W)×104.6(H) ×12.6(D) Mm

Luminance:

400 Cd/m² (Typ.)

Viewing Angle:

80/80/70/70 (Typ.)(CR≥10)

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO

Product details :

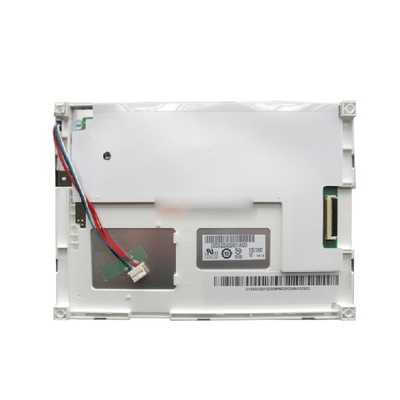

AUO LCD SCREEN G057QN01 V0
manufacturer	AUO
Model Name	G057QN01 V0
Diagonal size	5.7 inch
Screen type	a-Si TFT-LCD, LCD module
Bezel Area(mm)	320(RGB)×240, QVGA, 70PPI
Pixel arrangement	RGB vertical bar
Bezel Area(mm	115.2(W)×86.4(H) mm
Outline(mm)	144(W)×104.6(H) ×12.6(D) mm
Bezel Area(mm)	118.2(W)×89.4(H) mm
Surface treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	12 o'clock
Optical mode	TN, normally white display, transmissive
Viewing angle	80/80/70/70 (Typ.)(CR≥10)
responding	15/10 (Typ.)(Tr/Td) ms
Support Color	262K 50% NTSC
Backlight type	WLED [3 strings] , 50K hours , W/O Driver
Weight	155/170g (Typ./Max.)
Refresh rate	60Hz
Designed For	Industrial
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit) , 33 pins Connector
Supply voltage	3.3V (Typ.)
Application Environment	Working: -30 ~ 85 °C; Storage: -30 ~ 85 °C
33 pins CMOS 5.7 inch 320*240 WLED 400nits TFT modules with driver board G057QN01 V0 LCD display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

33 pins CMOS 5.7 inch 320*240 WLED 400nits TFT modules with driver board G057QN01 V0 LCD display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping Detail:

1: Please confirm your ADDRESS carefully once you make the order.We will send the products to you at once after the payment is received. 2: Items are shipped from China using airmail;reach most of the coun- tries within 15-30 business days. 3: Please contact us if you don't receive the products in 45 days. And please give us 3 working days for checking the undelivered package andthe reason. If it is our problem,we will refund the money to you.

FAQ

Q: Can I pay my goods G057QN01 V0 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods Kyocera G057QN01 V0 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you give me a discount if I need a large quantity of G057QN01 V0 ?

A: Of course!If you make a large order, we will give you a discount.
