LCD Screen Display Panel

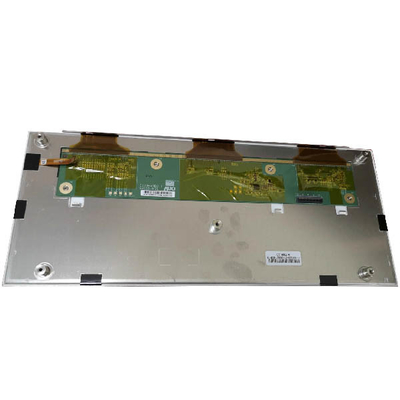

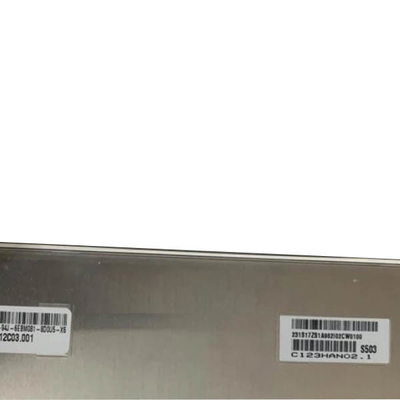

Original High Brightness Bar Type 10.3 Inch LCD Display 1280x480 C123HAN02.1

All Category

Floor Standing Digital Signage

Original High Brightness Bar Type 10.3 Inch LCD Display 1280x480 C123HAN02.1

Brand Name:	AUO
Model Number:	C123HAN02.1
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C123HAN02.1

Screen Size:

12.3 Inch

Resolution:

1920(RGB)×720 167PPI

Display Area:

292.032 × 109.512 (H×V) Mm

Outline Size:

310.75 × 129.86 × 16.23 (H×V×D) Mm

Visual Size:

293.94 × 111.42 (H×V) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Response Time:

15/20 (Typ.)(Tr/Td) Ms

Supply Ability:

100000 Unit/Units per Month

Highlight:

Bar Type LCD Screen Display

C123HAN02.1 LCD Screen Display

10.3'' High Brightness LCD Screen Display

Product Description

C102EVN01.0 New Original 10.2 inch LCD Display Panel for Car GPS Navigation DVD Player for AUO

Product details :

AUO LCD SCREEN C123HAN02.1
manufacturer	AUO
Model Name	C123HAN02.1
Diagonal size	12.3 inch
Screen type	a-Si TFT-LCD, LCD module
Resolution	1920(RGB)×720 167PPI
Pixel arrangement	RGB vertical bar
Display size	292.032 × 109.512 (H×V) mm
physical dimension	310.75 × 129.86 × 16.23 (H×V×D) mm
Visual size	293.94 × 111.42 (H×V) mm
Surface treatment	Antiglare
Display brightness	700 cd/m² (Typ.)
Contrast	1000: 1 (Typ.) (transmission)
Best View on	Symmetry
Optical mode	AHVA, normally black display, transmissive
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
responding	15/20 (Typ.)(Tr/Td) ms
Display Colors	16.7M 80% NTSC
Backlight type	8S4P WLED, 10K hours, without driver
Refresh rate	60Hz
Touch function	Without
Interface Type	LVDS (2 ch, 8-bit), connector, 40 pins
Supply voltage	3.3V (Typ.)
Application Environment	Work: -30 ~ 85 °C; Storage: -40 ~ 95 °C; Vibration resistance: 2.9G (28.4 m/s²)
C123HAN02.1 Original High Brightness Bar type LCD 10.3 inch Bar LCD Display 1280x480 Car LCD Instrument Panel

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Original High Brightness Bar Type 10.3 Inch LCD Display 1280x480 C123HAN02.1 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Helpful Information:

To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.

FAQ:

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Do you accept the sample order of AUO C123HAN02.1?

A: Yes, Welcome !

Q: How long the warranty of C123HAN02.1?

A: 90 days .

Q: What happen if the C123HAN02.1 I received can't work ?

A: Our C123HAN02.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
