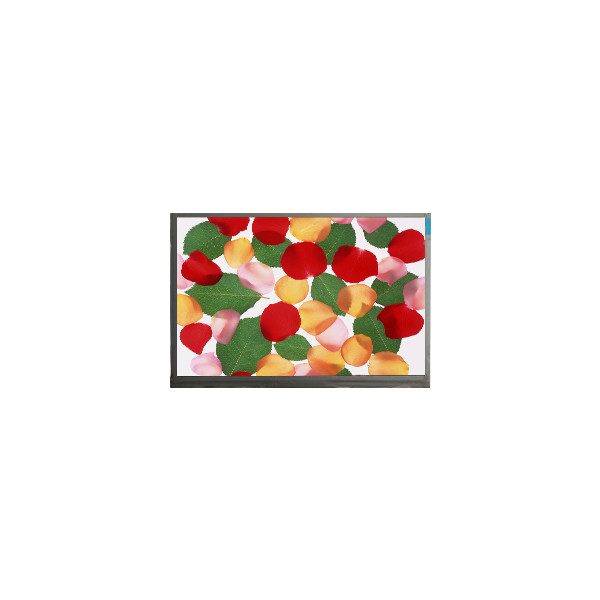

E080AWAA R1 8.0 inch lcd panel for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | E080AWAA R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | E080AWAA R1 | Screen Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOG | Resolution: | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Size: | 185.08(W)×110.59(H)×1.23(D) Mm | Surface: | Antiglare |
| Used For: | Automotive Display、Digital Photo Frame、Portable DVD Player | Contrast Ratio: | 900:1 (Typ.) (TM) |
Product Description
E080AWAA R1 8.0 inch lcd panel for Automotive Display
Product details :
| Brand | IVO |
| Model P/N | E080AWAA R1 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | - |
| Outline Size | 185.08(W)×110.59(H)×1.23(D) mm |
| Surface | Antiglare |
| Brightness | 0 cd/m² |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 3.3% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 75%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Built-in 1 source + 2 gate chips |
| Panel Weight | 65.0g (Max.) |
| Application | Automotive Display,Digital Photo Frame,Portable DVD Player |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pinsFPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Helpful hints:
For Brazilian buyers, if you choose express shipping, such as fedex DHL UPS etc. Please provide company name and CNPJ number or CPF number.
Please check your messages frequently, we may have some questions that you need to confirm before shipping.
Please provide your full name for shipping.
If the product has parameters, please select it, or indicate it in the order.
Chile and African buyers please provide your tax ID for express shipping such as UPS.
Postage is cheap but not fast, especially for some remote countries. If you're in a hurry, check out the faster method.
If you use express delivery, please make sure that you are not in remote areas, otherwise you will need to pay extra, please note that it is remote delivery: charged by the logistics company!
Every package has a tracking number.
Standard batteries, liquids and other prohibited parts are usually removed prior to shipment, if your item falls into this category we may ship via dedicated line for an additional fee
Duties, duties and import charges are the responsibility of the buyer. We are not responsible for any customs delays or any duties, duties, value added tax (VAT) or other charges that may arise from your purchases. Know your customs policy.
FAQ:
Q: How to order lcd screen E080AWAA R1 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of E080AWAA R1 ?
A: 90 days.
Q: What happen if the E080AWAA R1 I received can't work ?
A: Our lcd panel E080AWAA R1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my E080AWAA R1 lcd display when shipping?
A: Yes , please inform us the value you want .
