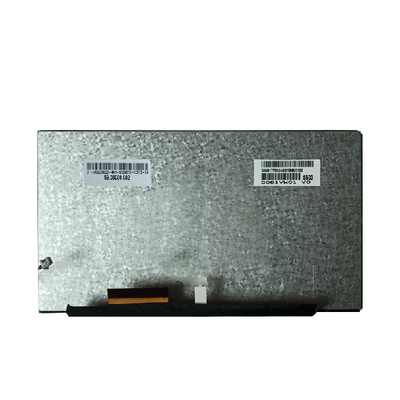

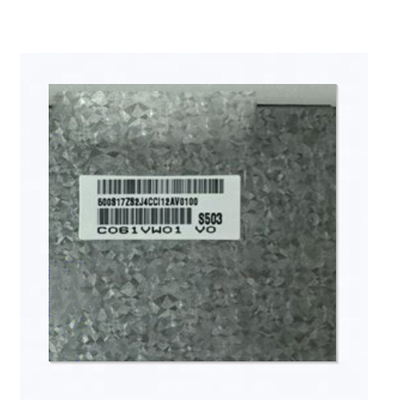

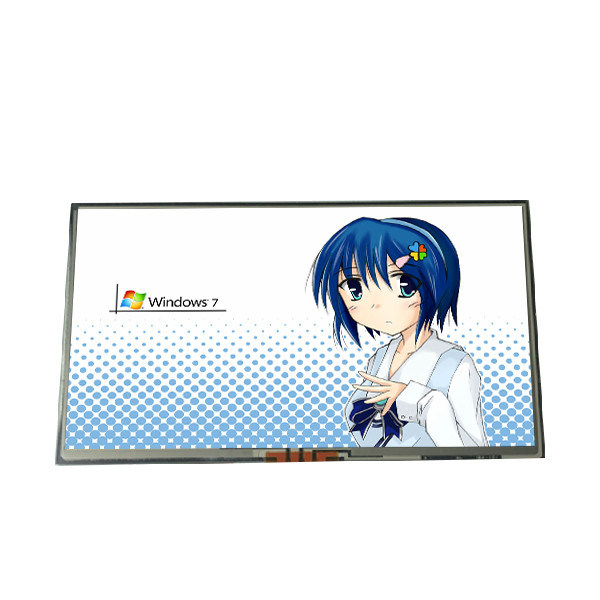

Original New 6.1 inch C061VW01 V0 LCD Display for Car GPS Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C061VW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C061VW01 V0 | Screen Size: | 6.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 [WVGA] 153PPI | Display Area: | 136.2(H)×72(V) Mm |
| Outline Dim.: | 147(H)×82.9(V) ×6.8(D) Mm | Bezel Area: | 138.2(H)×74.0(V) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
Product Description
Original New 6.1 inch C061VW01 V0 LCD Display for Car GPS Navigation
Product details :
| AUO LCD SCREEN C061VW01 V0 | |
| Panel Brand | AUO |
| Panel Model | C061VW01 V0 |
| Panel Size | 6.1" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 136.2(W)×72(H) mm |
| Bezel Opening | 138.2(W)×74.0(H) mm |
| Outline Size | 147(W)×82.9(H)×6.8(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 49% NTSC |
| Lamp Type | 3S9P WLED , 10K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 120±10g |
| Designed For | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 50 pins , FPC |
| Input Voltage | 3.0/11/15/-8V (Typ.)(VDDIO/AVDD/VGH/VGL) |
| Environment | Working: -30 ~ 80 °C ; Storage: -40 ~ 90 °C |
| Original New 6.1 inch C061VW01 V0 LCD Display for Car GPS Navigation | |
Useful information:
To make sure you're buying the correct screen, make sure it matches the size, resolution, and backlight of the product. If you are not sure, please contact us with your LCD screen brand/series/model, or the model number on the back of the screen. Our technicians will help you choose the right screen.
Mail:
Usually we will prepare and ship your goods within 1 working day.
Please check that your item is in good condition upon receipt
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of C061VW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of C061VW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of C061VW01 V0 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
