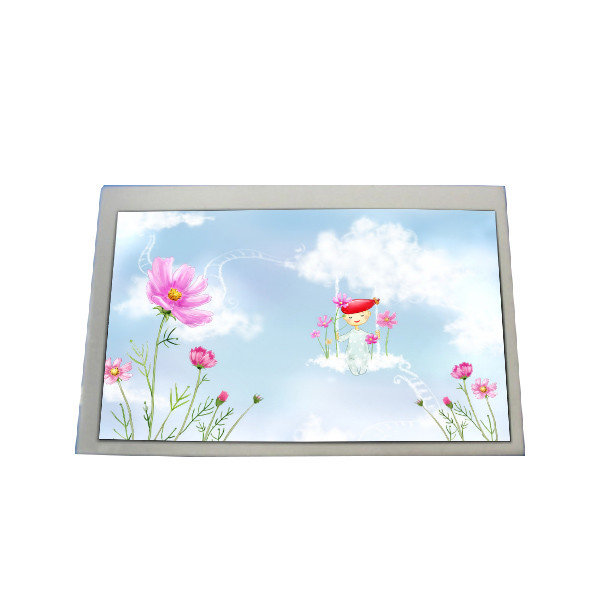

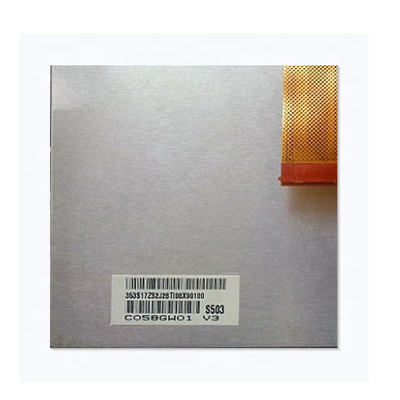

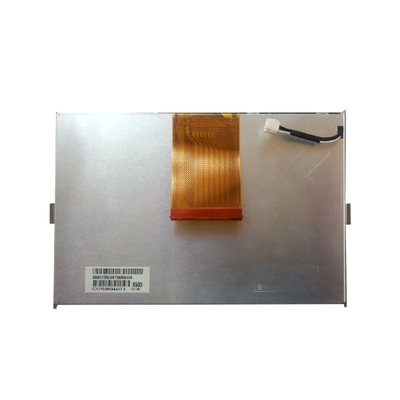

New C058GW01 V3 5.8 inch Car GPS Navigation LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C058GW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C058GW01 V3 | Screen Size: | 5.8 Inch |
|---|---|---|---|
| Resolution: | 400(RGB)×240, WQVGA, 80PPI | Display Area: | 126(H)×75.6(V) Mm |
| Outline Dim.: | 140(H)×93(V) ×6.6(D) Mm | Bezel Area: | 129.6(H)×78.6(V) Mm |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
Product Description
New C058GW01 V3 5.8 inch Car GPS Navigation LCD Display
Product details :
| AUO LCD SCREEN C058GW01 V3 | |
| Panel Brand | AUO |
| Panel Model | C058GW01 V3 |
| Panel Size | 5.8" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 400(RGB)×240, WQVGA, 80PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 126(W)×75.6(H) mm |
| Bezel Opening | 129.6(W)×78.6(H) mm |
| Outline Size | 140(W)×93(H)×6.6(D) mm |
| Surface | Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Min.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 50% NTSC |
| Lamp Type | 6S2P WLED , 10K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 64 pins , FPC |
| Input Voltage | 3.3/12.6/15.5/-9.0V (Typ.)(VDDIO/AVDD/VGH/VGL) |
| Environment | Operating: -30 ~ 85 °C ; Storage: -40 ~ 95 °C ; Vibration Resistance: 2.9G (28.4 m/s²) |
| New C058GW01 V3 5.8 inch Car GPS Navigation LCD Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1.) Items will be dispatched within 2-5 business days after payment confirmation. Shipping is via China Post Air Mail/Hong Kong Post Mail; we will provide tracking numbers for all shipping methods. You can follow it on their official website.
2.) We are not responsible for the carrier's transit time. This information is provided by the carrier and excludes weekends and holidays.
3.) If you choose DHL or UPS, Brazilian buyers must provide CPF number in advance, otherwise we must ship by EMS.
4.) All buyers need to pay extra for remote area service via DHL, UPS or Fedex, but EMS is not required.
5.) Delivery times may vary, especially during periods or bad weather conditions. Please do not file a dispute before contacting us. If you are in a hurry, please choose DHL or other express!
If you do not receive it on time, we can extend the delivery time for you.
FAQ:
Q: Can You declare my order of C058GW01 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of C058GW01 V3 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of C058GW01 V3 ?
A: Of course!sample order is welcome !
