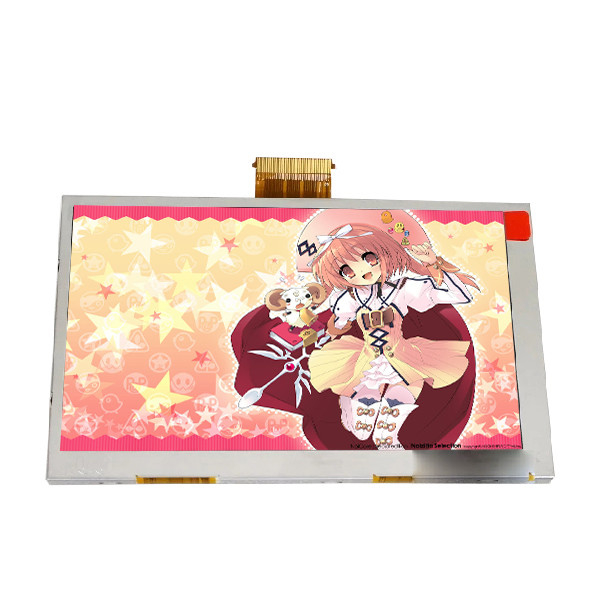

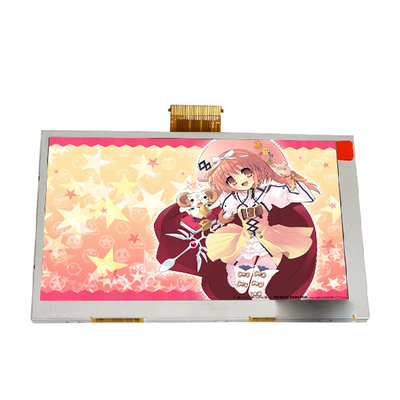

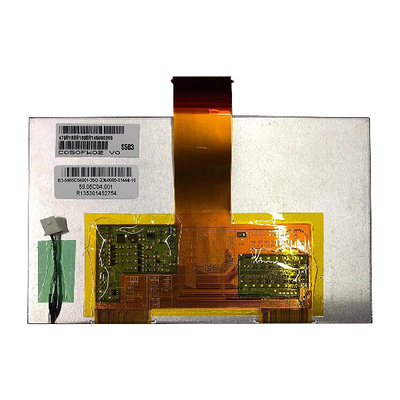

Brand new 5 inch C050FW02 V0 LCD Screen Panel for Car GPS Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C050FW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C050FW02 V0 | Screen Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 106PPI | Display Area: | 110.88(H)×62.478(V) Mm |
| Outline(mm): | 124(H)×75.2(V) ×8(D) Mm | Bezel Opening: | 113.28(H)×64.878(V) Mm |
| Luminance: | 700 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
Product Description
Brand new 5 inch C050FW02 V0 LCD Screen Panel for Car GPS Navigation
Product details :
| AUO LCD SCREEN C050FTN01.0 | |
| Panel Brand | AUO |
| Panel Model | C050FTN01.0 |
| Panel Size | 5.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×234 106PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 110.88 × 62.478 mm (H×V) |
| Bezel Opening | 114.4 × 66.65 mm (H×V) |
| Outline Size | 124 × 75.36 × 8.25 mm (H×V×D) |
| Brightness | 1100 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 60/60/60/40 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) ms |
| Display Colors | 16.7M , 65% NTSC |
| Lamp Type | 5S2P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 93.5±0.9g |
| Application | Outdoor High Brightness / Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , FPC , 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -40 ~ 95 °C Operating temperature: -30 ~ 85 °C ; Vibration resistance: 2.9G (28.4 m/s²) |
| C050FTN01.0 Original 5.0 inch LCD Display Screen for Car GPS Navigation System for AUO | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Warranty and Returns:
1. We provide warranty for all products.
2. Buyer is responsible for the shipping cost to return defective or non-defective items to us.
3. The returned item must be in as good condition as we sent it without damage.
4. The returned item is subject to our approval and it should be in the original box we sent.
5. Physically damaged items received must be reported within 2 days.
6. All non-seller error returns, there is a 15% restocking fee, shipping and handling charges are non-refundable. (e.g. you bought the wrong item)
FAQ:
Q: If I place order now,when will you ship the goods of C050FW02 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of C050FW02 V0 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of C050FW02 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
