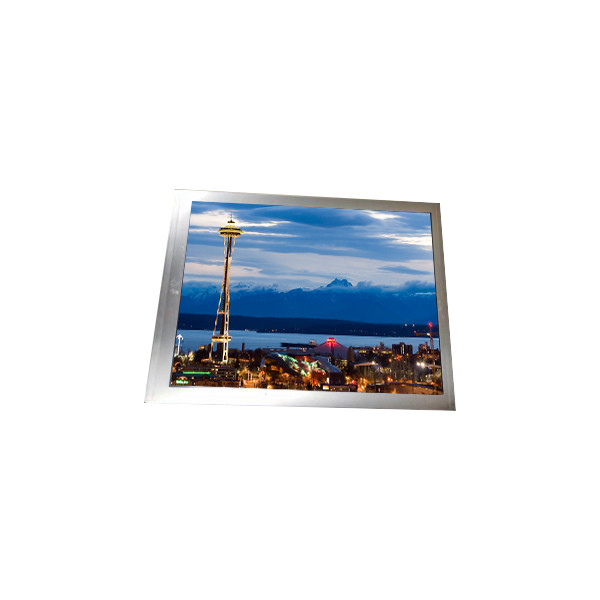

NEW and Original 11.6 inch B116XTN02.3 HW2E lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XTN02.3 HW2E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XTN02.3 HW2E | Screen Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Designed For: | Laptop /Netbook PC |
Product Description
NEW and Original 11.6 inch B116XTN02.3 HW2E lcd panel
Product details :
| Brand | AUO |
| Model P/N | B116XTN02.3 HW2E |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 278(W)×168(H) ×3(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop /Netbook PC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Suggestion:
If you cannot find the part you are looking for, please contact us for details as we have many other products that are not yet available in the store.
We have a variety of shipping options, business express such as DHL, UPS, FedEx, EMS, TNT, DPEX, Aramex, SF Express, and ordinary postal services such as China Post Registered Air Mail, AliExpress Standard Shipping, etc.
If you need the product urgently, please choose business express.
All buyers should be responsible for import duties (duties) according to the policies of different countries.
Thank you for your attention.
FAQ:
Q: How long is the warranty of B116XTN02.3 HW2E ?
A: 90days warranty .
Q: How can I trace my order of B116XTN02.3 HW2E ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B116XTN02.3 HW2E by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for B116XTN02.3 HW2E ?
A: Of course!sample order is welcome !
