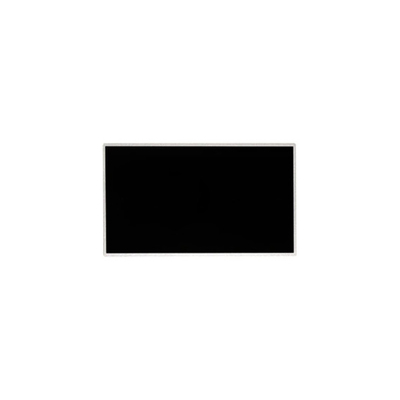

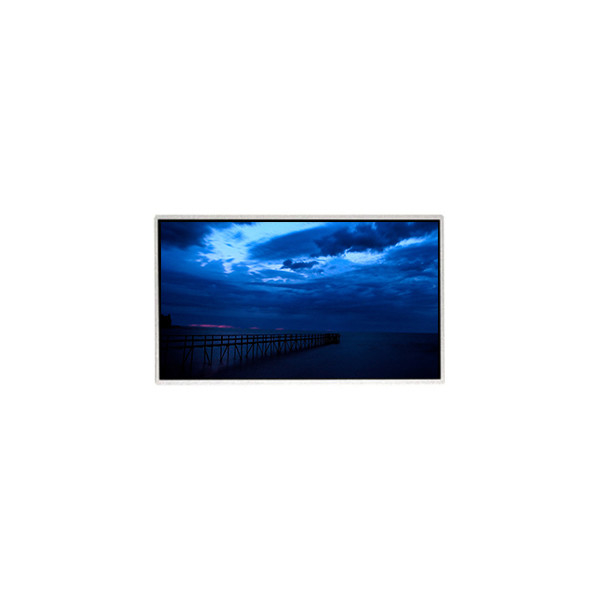

TT070WSQ-N10 7.0 inch lcd screen 1024*600 lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TT070WSQ-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TT070WSQ-N10 | Screen Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 170PPI | Active Area: | 154.214(W)×85.92(H) Mm |
| Outline(mm): | 162.2(W)×95.7(H)×1(D) Mm | Designed For: | Portable Navigation |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Frequency: | 60Hz | Environment: | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
Product Description
TT070WSQ-N10 7.0 inch lcd screen 1024*600 lcd panel
Product details :
| Brand | BOE |
| Model P/N | TT070WSQ-N10 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1024(RGB)×600, WSVGA 170PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.214(W)×85.92(H) mm |
| Bezel Opening | - |
| Outline Size | 162.2(W)×95.7(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.2% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8282-A06 + HX8696-A, ILI6150B2 + ILI5120 |
| Panel Weight | - |
| Application | Portable Navigation |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1. Worldwide shipping. (Except some countries and APO/FPO)
2. The order will be processed in time after payment is confirmed.
3. We only ship to the confirmed order address. Your order address must match your shipping address.
4. The pictures are in kind, please check carefully before placing an order.
5. SERVICE TRANSIT TIME is provided by the carrier, excluding weekends and holidays. Shipping times may vary, especially during holidays.
6. If you do not receive your goods within 50 days after payment, please contact us. We will track the shipment and get back to you as soon as possible. Our goal is to keep our customers happy!
7. Due to stock status and time difference, we will choose to ship from our first available warehouse for fast delivery.
FAQ:
Q: Can You declare my order of TT070WSQ-N10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of TT070WSQ-N10 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods TT070WSQ-N10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of TT070WSQ-N10 ?
A: We accept T/T , Paypal , western union .
