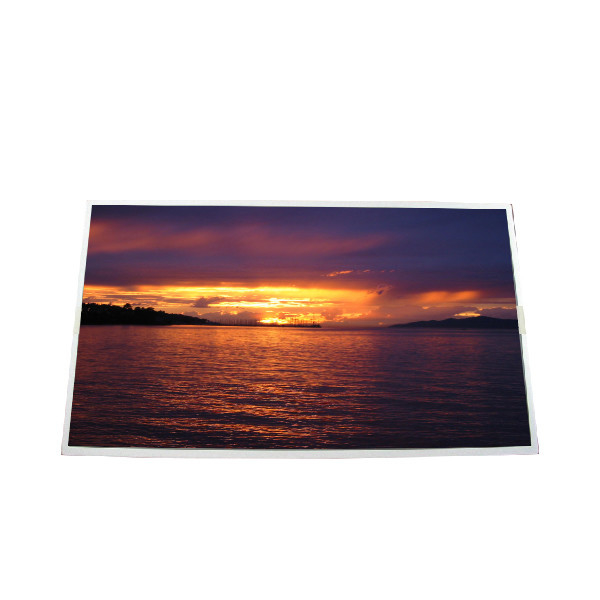

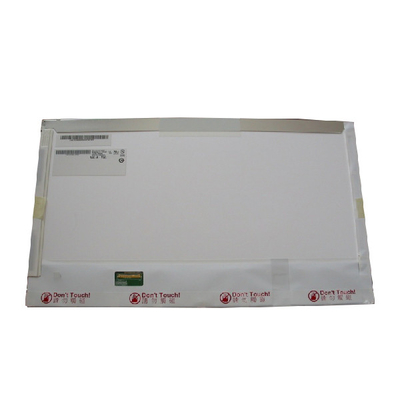

Name: 17.3 Inch Lcd Display 30 Pin B173RW01 V0 For Lenovo Laptop
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B173RW01 V0
Availability: InStock

Brand Name:	AUO
Model Number:	B173RW01 V0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B173RW01 V0 (AUO109E)

Screen Size:

17.3 Inch

Resolution:

1600(RGB)×900, HD+, 106PPI

Display Area:

382.08(W)×214.92(H) Mm

Outline(mm):

398.1(W)×232.8(H) ×5.8(D) Mm

Bezel Opening:

385.08(W)×217.92(H) Mm

Shape Style:

Wedge (PCBA Bent, T≥5.2mm)

Contrast Ratio:

500:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Highlight:

17.3 Inch Lcd Display

30 Pin lenovo laptop screen replacement

LCD Laptop Screen 106PPI

Product Description

17.3 inch lcd display 30 pin B173RW01 V0 for lenovo laptop

Product details :

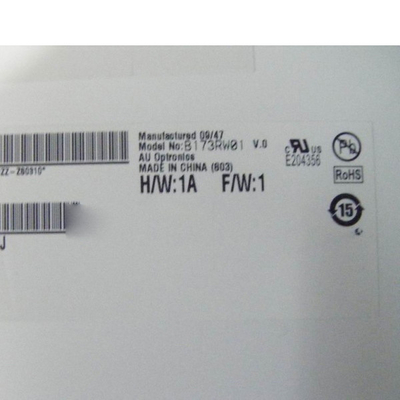

AUO LCD SCREEN B173RW01 V0 (AUO109E)
Panel Brand	AUO
Panel Model	B173RW01 V0 (AUO109E)
Panel Size	17.3"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1600(RGB)×900, HD+, 106PPI
Pixel Format	RGB Vertical Stripe
Display Area	382.08(W)×214.92(H) mm
Bezel Opening	385.08(W)×217.92(H) mm
Outline Size	398.1(W)×232.8(H)×5.8(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	220 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (Transmission)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	2/6 (Typ.)(Tr/Td)
Display Colors	262K , 60% NTSC
Lamp Type	WLED , 10K hours, with LED driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Application	Laptop
Signal Interface	LVDS (2 ch, 6-bit) , 40 pins , terminal
Input Voltage	3.3V (Typ.)
Environment	Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
17.3 inch lcd display 30 pin B173RW01 V0 for lenovo laptop

Important hint:

1) Please confirm this information carefully before ordering: "Size" & "Resolution" & "Connector"

(left or right)".
2) Please keep the warranty label intact, any damaged label will cause the warranty to stop automatically.

Our warranty period is 3 months.
3) When you receive the goods, please carefully check whether the goods are well packaged and working properly.

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

17.3 Inch Lcd Display 30 Pin B173RW01 V0 For Lenovo Laptop 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: Do you accept sample orders of B173RW01 V0 (AUO109E) ?

A: Of course!sample order is welcome !

Q: Can You declare my order of B173RW01 V0 (AUO109E) to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of B173RW01 V0 (AUO109E) ?

A: We accept T/T , Paypal , western union .

Q: How can I trace my order of B173RW01 V0 (AUO109E) ?

A: we will give you tracking number then you can trace your order from website.
