B173HTN01.1 Laptop Lcd Screen Display Monitor Panel Replacement 1920*1080 EDP 30 Pins
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B173HTN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B173HTN01.1 (AUO119D) | Screen Size: | 17.3 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 127PPI | Display Area: | 381.888(H)×214.812(V) Mm |
| Outline(mm): | 398.1(H)×233.3(V) ×6(D) Mm | Outline Shape: | Wedge (PCBA Bent, T≥5.2mm) |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| High Light: | B173HTN01.1 Laptop Lcd Screen Display,30 Pins Laptop Monitor Panel Replacement,Laptop Lcd Screen Display 1920*1080 |
||
Product Description

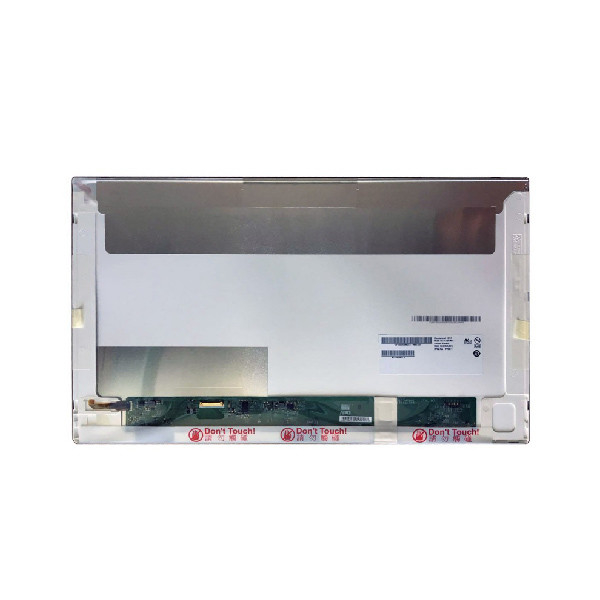

17.3 inch B173HTN01.1 Laptop Lcd Screen display monitor panel replacement 1920*1080 EDP 30 Pins
Product details :
| AUO LCD SCREEN B173HTN01.1 (AUO119D) | |
| Panel Brand | AUO |
| Panel Model | B173HTN01.1 (AUO119D) |
| Panel Size | 17.3" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 381.888(W)×214.812(H) mm |
| Outline Size | 398.1(W)×233.3(H)×6(D) mm |
| Surface | Matte surface, Hard coating (3H), reflectivity 4.3% (Typ.) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 72% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 17.3 inch B173HTN01.1 Laptop Lcd Screen display monitor panel replacement 1920*1080 EDP 30 Pins | |
-guarantee
1. All items will be strictly tested before shipment.
2. The warranty period is 90 days.
- Refunds and returns
1. If the item is defective, please notify us within 3 days after receiving the item.
2. If possible, items should be returned in their original packaging.
Note: Due to regional weather and other factors, the delivery time of China Post Ai Mail will take 10-50 days. Please be patient if you choose China Post Airmail
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept sample orders of B173HTN01.1 (AUO119D) ?
A: Of course!sample order is welcome !
Q: How can I trace my order of B173HTN01.1 (AUO119D) ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: How to make payment of B173HTN01.1 (AUO119D) ?
A: We accept T/T , Paypal , western union .
