Original Laptop Lcd Monitor Screen B170UW01 V0 1920×1200
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B170UW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B170UW01 V0 (AUO1088) | Screen Size: | 17.0“ |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA, 132PPI | Display Area: | 367.2(W)×229.5(H) Mm |
| Outline(mm): | 382.2(W)×243.3(H) ×6.6(D) Mm | Bezel Area: | 371.2(W)×233.5(H) Mm |
| Luminance: | 260 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Highlight: | Original Laptop Lcd Monitor Screen,1920×1200 Laptop Lcd Monitor Screen,Laptop Lcd Monitor Screen B170UW01 |
||
Product Description

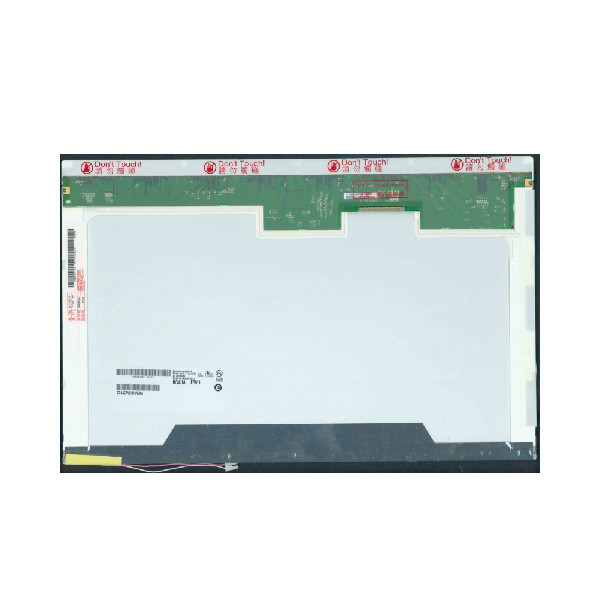

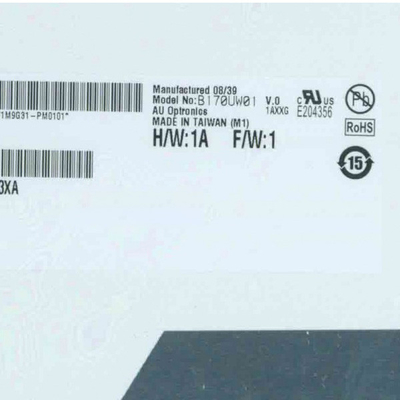

Original Laptop lcd monitor screen B170UW01 V0 1920×1200
Product details :
| AUO LCD SCREEN B170UW01 V0 (AUO1088) | |
| Panel Brand | AUO |
| Panel Model | B170UW01 V0 (AUO1088) |
| Panel Size | 17.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1200, WUXGA, 132PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 367.2 × 229.5 mm (H×V) |
| Bezel Opening | 371.2 × 233.5 mm (H×V) |
| Outline Size | 382.2(W)×243.3(H) ×6.6(D) mm |
| Surface | Glare (Haze 0%), Hard coating (4H) |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | 1 pcs CCFL , without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| Original Laptop lcd monitor screen B170UW01 V0 1920×1200 | |
