16.4 inch B164RW01 V0 TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B164RW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B164RW01 V0 (AUO10BE) | Screen Size: | 16.4“ |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 [HD+] 112PPI | Display Area: | 362.4(H)×203.85(V) Mm |
| Outline(mm): | 375(H)×219.1(V) ×6.5(D) Mm | Bezel Area: | 365.9(H)×207.35(V) Mm |
| Luminance: | 210 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description

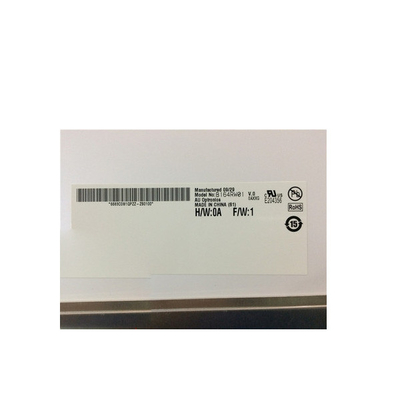

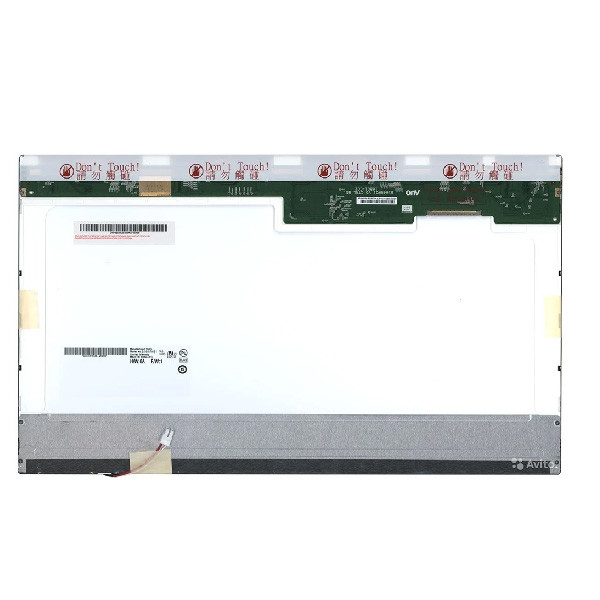

16.4 inch B164RW01 V0 TFT LCD Panel Screen Display
Product details :
| AUO LCD SCREEN B164RW01 V0 (AUO10BE) | |
| Panel Brand | AUO |
| Panel Model | B164RW01 V0 (AUO10BE) |
| Panel Size | 16.4" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1600(RGB)×900(HD+) 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 362.4 × 203.85 (H×V) mm |
| Bezel Opening | 365.9 × 207.35 (H×V) mm |
| Outline Size | 375 × 219.1 × 6.5 (H×V×D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 210 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/20/40 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 50% NTSC |
| Lamp Type | 1 pcs CCFL , 10K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , terminal, 30 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| 16.4 inch B164RW01 V0 TFT LCD Panel Screen Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Deliver goods:
We can send items within 7 working days after payment is confirmed.
The shipping method depends on the shipping cost you choose, so please choose the appropriate shipping method according to your own situation.
If your location is in a remote area, additional charges may apply and we will notify you if shipping costs change.
FAQ:
Q: Do you accept sample orders of B164RW01 V0 (AUO10BE) ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of B164RW01 V0 (AUO10BE) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of B164RW01 V0 (AUO10BE) ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of B164RW01 V0 (AUO10BE) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
