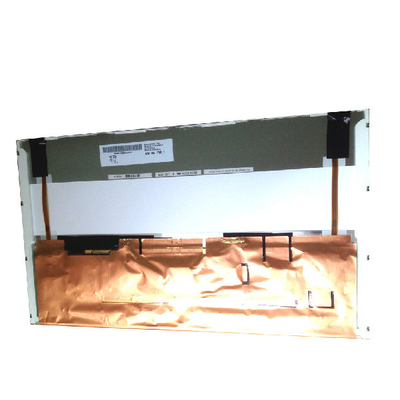

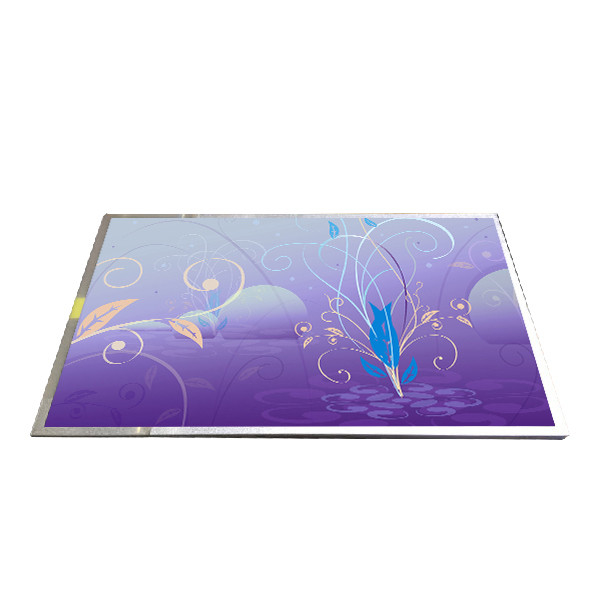

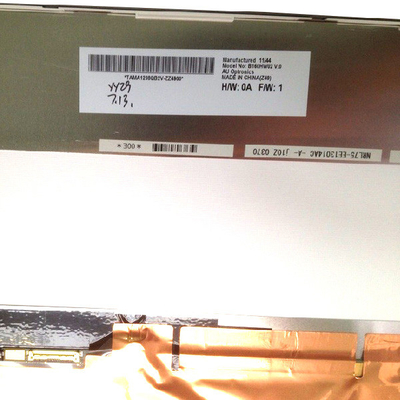

NEW LCD screen B160HW02 V0 LAPTOP display WUXGA 16.0 inch Fit for Sony VPCF
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B160HW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B160HW02 V0 | Screen Size: | 16.0“ |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 [FHD] 137PPI | Display Area: | 354.24(H)×199.26(V) Mm |
| Outline(mm): | 375(H)×218(V) Mm | Designed For: | Laptop |
| Luminance: | 225 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
NEW LCD screen B160HW02 V0 LAPTOP display WUXGA 16.0 inch Fit for Sony VPCF
Product details :
| AUO LCD SCREEN B160HW02 V0 | |
| Panel Brand | AUO |
| Panel Model | B160HW02 V0 |
| Panel Size | 16.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 [FHD] 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 354.24 × 199.26 (H×V) mm |
| Outline Size | 375 × 218 (H×V×D) mm |
| Surface | Antiglare |
| Brightness | 225 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmission) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 82% NTSC |
| Lamp Type | WLED , with LED driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Designed For | Laptop |
| Signal Interface | eDP (4 Lanes) , eDP1.1 , HBR1 (2.7G/lane) , terminal, 30 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD33/VDD5) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| NEW LCD screen B160HW02 V0 LAPTOP display WUXGA 16.0 inch Fit for Sony VPCF | |
warn:
To avoid placing the wrong order or purchasing the wrong item, please read the following before ordering.
1. Tell us the LCD model name you have now, such as: LTN156AT19-001
2. Tell us your laptop name, eg: DV3000, G50, if you don't have an LCD model.
3. Please check the LCD screen size and resolution.
4. Please check the signal interface (14-pin, 20-pin, 30-pin (S M L), 40-pin (S, M, L), 50-pin and 60-pin) and position.
