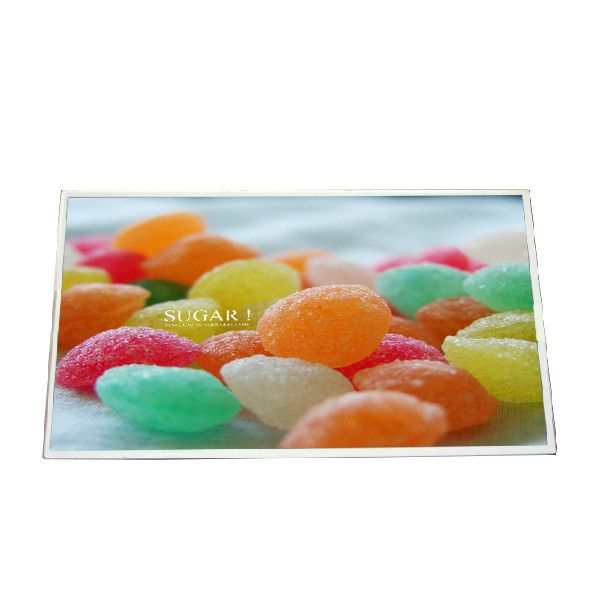

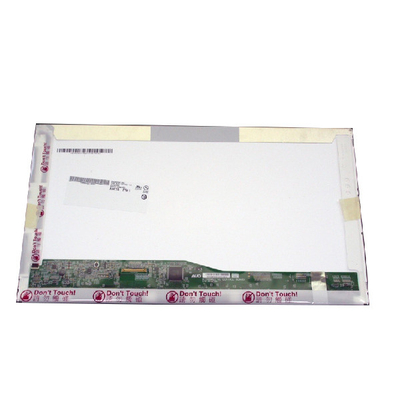

15.6 inch B156RW01 V0 laptop lcd screen panel 40 pins 1600*900
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156RW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156RW01 V0 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+, 118PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline(mm): | 359.3(W)×209.5(H) ×5.7(D) Mm | Bezel Area(mm): | 347.2(W)×196.5(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 400:1 (Min.) (TM) |
Product Description
15.6 inch B156RW01 V0 laptop lcd screen panel 40 pins 1600*900
Product details :
| AUO LCD SCREEN B156RW01 V0 | |
| Panel Brand | AUO |
| Panel Model | B156RW01 V0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1600(RGB)×900, HD+, 118PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.16 × 193.59 mm (H×V) |
| Bezel Opening | 347.2 × 196.5 mm (H×V) |
| Outline Size | 359.3 × 209.5 × 5.7mm (H×V×D |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td); ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 15.6 inch B156RW01 V0 laptop lcd screen panel 40 pins 1600*900 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Tips Notes:
1. Brazilian customers: If you choose DHL, please tell us your tax ID number, this is the requirement of DHL, but we will follow you to fill in the value declaration, please rest assured.
2. Statement: If you have special requirements for value statement, please leave us a message. If you don't, we will declare it by default.
3. Duties: Seller is not responsible for any import taxes, duties or customs delays.
If unfortunately your package is held by customs, please do not place an order.
4. Express cost in remote areas: When you choose express delivery such as: DHL, FEDEX, UPS, TNT, EMS, etc., please enter your own express company website to confirm, if your address in remote areas is a designated express company, you need Pay extra or we will choose a cheaper way to ship to you as the shipping you pay does not include any extra. Please understand this special case.
FAQ:
Q: If I place order now,when will you ship the goods of B156RW01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods B156RW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of B156RW01 V0 ?
A: We accept T/T , Paypal , western union .
