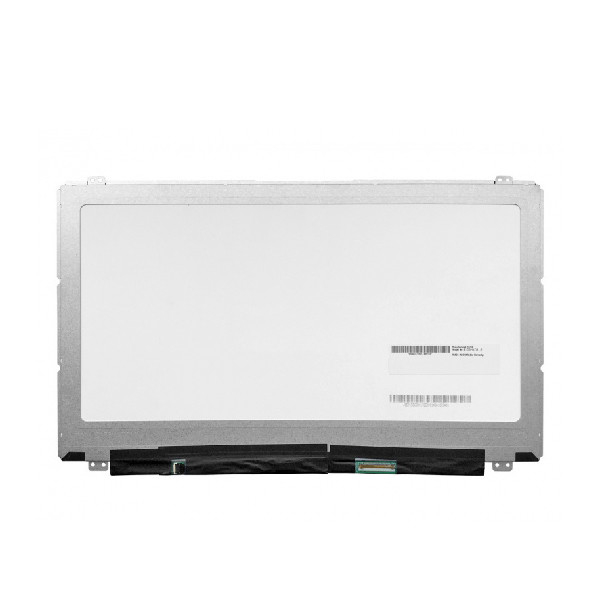

15.6 Inch Laptop Screen LCD Touch Screen B156HAT01.0 Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAT01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAT01.0 (AUO10ED) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 [FHD] 141PPI | Active Area(mm): | 344.16(H)×193.59(V) Mm |
| Outline(mm): | 366.38(H)×224.81(V) ×5.4(D) Mm | Luminance: | 270 Cd/m² (Typ.) |
| Contrast Ratio: | 800:1 (Typ.) (TM) | Touch Panel: | PCAP, Optical Bonding |
Product Description
15.6 Inch Laptop Screen LCD Touch Screen B156HAT01.0 Assembly
Product details :
| AUO LCD SCREEN B156HAT01.0 (AUO10ED) | |
| Panel Brand | AUO |
| Panel Model | B156HAT01.0 (AUO10ED) |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 366.38(W)×224.81(H)×5.4(D) mm |
| Surface | Hard coating (7H) |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 72% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | PCAP, Optical Bonding |
| Signal Interface | eDP (2 Lanes) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.6 Inch Laptop Screen LCD Touch Screen B156HAT01.0 Assembly | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
For Brazilian buyers, if you choose express shipping, such as FED DHL UPS etc. Be sure to provide the company name and CNPJ number or CPF number.
Please check your messages frequently, we may have some questions that you need to confirm before shipping.
Please provide your full name for shipment.
If the product has parameters, please select it, or indicate it in the order.
Chile, Argentina buyers, please provide your tax ID for express shipments such as UPS.
The "Estimated Delivery Time" given by the shipping company is incorrect and not our guaranteed time.
Postal mail is cheap but not fast, especially for some remote countries. If you're in a hurry, ask for a faster way.
If shipping by express, please make sure you are not in remote areas, otherwise additional charges will be required, and please note that this is for remote areas: charged by YONGS company!
Standard batteries, liquids and other prohibited parts are usually removed prior to shipment, if your item is these we may ship via dedicated line which will incur additional charges
Duties, duties and import charges are the responsibility of the buyer. We are not responsible for customs delays or any duties, duties, value added tax (VAT) or other charges that may arise from your purchases. Know your customs policy.
FAQ:
Q: Can You declare my order of B156HAT01.0 (AUO10ED) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B156HAT01.0 (AUO10ED)?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B156HAT01.0 (AUO10ED) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of B156HAT01.0 (AUO10ED) ?
A: Of course!sample order is welcome !
