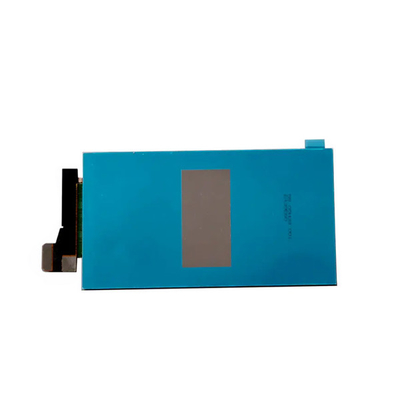

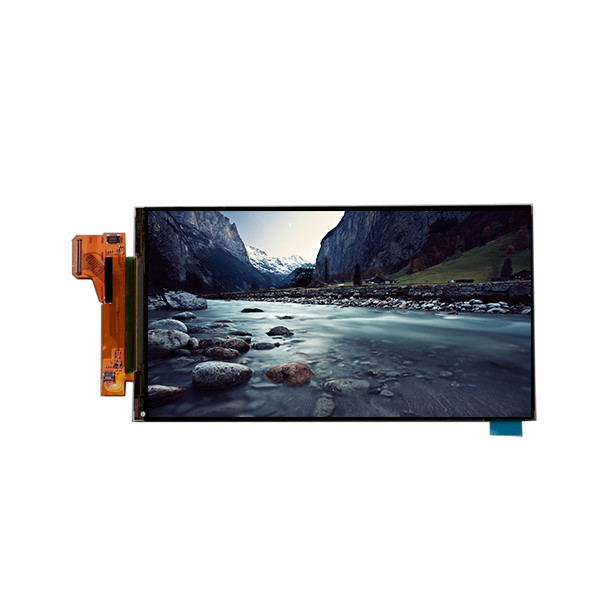

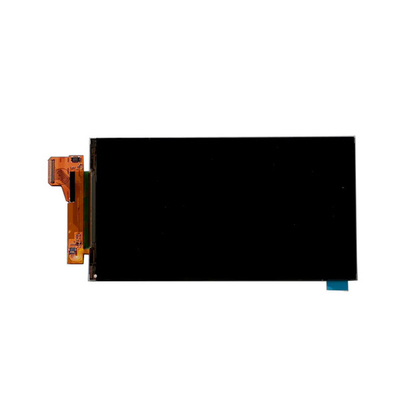

BOE 5.5 inch VS055QUM-NH0-6KP0 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | VS055QUM-NH0-6KP0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | VS055QUM-NH0-6KP0 | Screen Size: | 5.5" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 2160(RGB)×3840, UHD 806PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Outline Dim.: | 70.26(H)×133.1(V) Mm | Luminance: | 150 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) (TM) | Designed For: | HMD VR AR |
Product Description
BOE 5.5 inch VS055QUM-NH0-6KP0 LCD Screen Display Panel
Product details :
| Brand | BOE |
| Model P/N | VS055QUM-NH0-6KP0 |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 2160(RGB)×3840, UHD 806PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.26(H)×133.1(V) mm |
| Treatment | - |
| Luminance | 150 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5.5 (Max.)(G to G) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [4S3P], W/O Driver |
| Weight | 33.0±2.0g |
| Designed For | HMD VR AR |
| Frame Rate | 90Hz |
| Touch Panel | Without |
| Interface Type | MIPI (2 ch, 4 data lanes), 60 pinsConnector |
| Power Supply | 1.8/6.0/-6.0V (Typ.)(VDDI/AVDD/AVEE) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
1. We will strictly test it before shipment.
2. We only pay shipping and tax for our country, if your country has shipping and tax, you should pay.
3. We will send the product within 7 working days after receiving the order. (We will extend the delivery time of the product under special circumstances)
4. Many original LCD screens have been discontinued, we sell second-hand ones, which are in good working condition.
5. If you need 100% brand new, please confirm with us before buying.
FAQ:
Q: How can I trace my order of VS055QUM-NH0-6KP0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of VS055QUM-NH0-6KP0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of VS055QUM-NH0-6KP0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of VS055QUM-NH0-6KP0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
