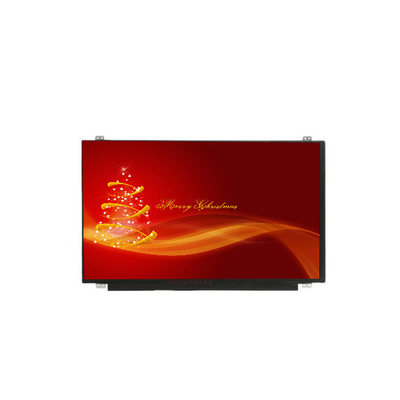

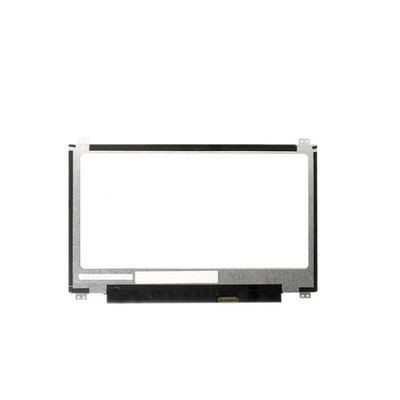

15.6 inch B156HAB01.0 LCD Screen Display replace for Dell Inspiron 15-5568 5568 5578 B156HAB01.0 LED LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156HAB01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAB01.0 (AUO10ED) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 359.5 × 223.8 × 4.4 (H×V×D) | Luminance: | 220 (Typ.)(cd/m²) |
| Contrast Ratio: | 800 : 1 (Typ.) (TM) | Used For: | Laptop |
Product Description
15.6 inch B156HAB01.0 LCD Screen Display replace for Dell Inspiron 15-5568 5568 5578 B156HAB01.0 LED LCD Touch Screen
Product details :

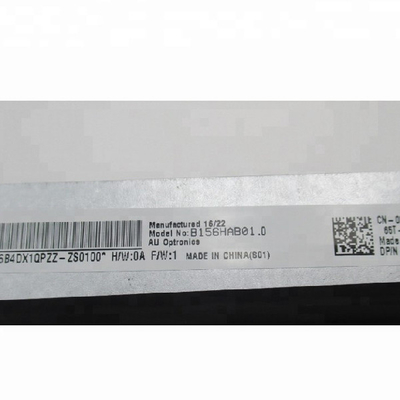

| AUO LCD SCREEN B156HAB01.0 (AUO10ED) | |
| manufacturer | AUO |
| Model Name | B156HAB01.0 (AUO10ED) |
| screen size | 15.6" |
| Screen type | Screen assembly, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 (FHD) 141PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 344.16 × 193.59 mm (H×V) |
| physical dimension | 359.5 × 223.8 × 4.4 mm (H×V×D) |
| Surface treatment | Glare (Haze 0%) |
| Display brightness | 220 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) [Transmission] |
| Best perspective | Full view |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K , 45% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Screen weight | Thin screen (PCBA straight, thickness ≤3.2mm) |
| Apply to | notebook |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| Interface Type | eDP (2 Lanes), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 15.6 inch B156HAB01.0 LCD Screen Display replace for Dell Inspiron 15-5568 5568 5578 B156HAB01.0 LED LCD Touch Screen 15.6 inch FHD Display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Quality and Guarantee and Delivery Customs:
1. If you have any problem within 1 month after receiving the item, you can contact us and we will try our best to provide you with the best solution.
2. If you buy the wrong item or you don't want the item you bought, you can return it to us within 3 days, but you have to bear the shipping cost.
3. We will sell you the products at the best price, the price does not include customs fees, if the package causes customs fees, you need to pay by yourself.
4. If you do not receive the package after a very long time, please contact us and we will solve the problem.
FAQ:
Q: If I place order now,when will you ship the goods of B156HAB01.0 (AUO10ED) ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods B156HAB01.0 (AUO10ED) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of B156HAB01.0 (AUO10ED) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B156HAB01.0 (AUO10ED) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
