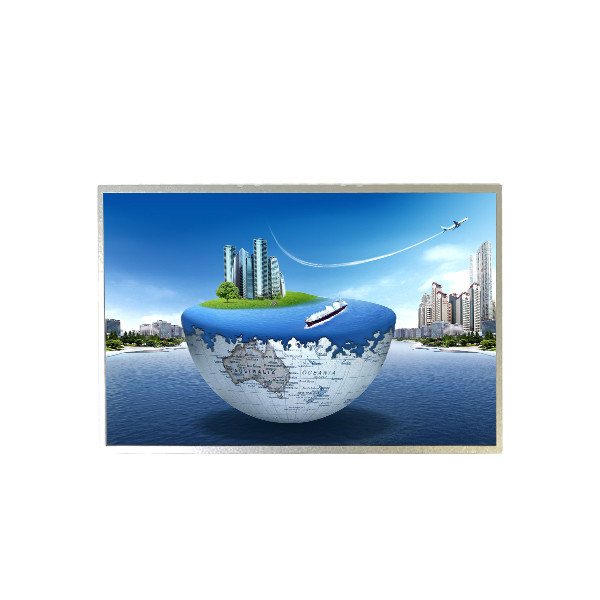

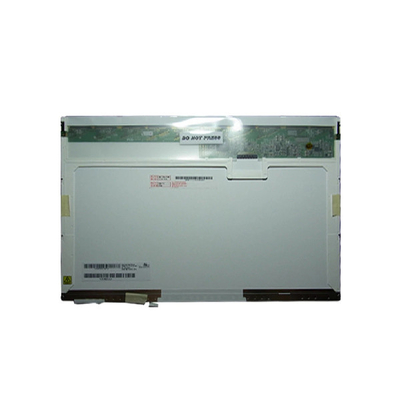

15.2 inch B152EW01 1280x854 TFT LCD Panel Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B152EW01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B152EW01 | Screen Size: | 15.2 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×854 101PPI | Active Area(mm): | 320.7 × 213.9 (H×V) |
| Outline(mm): | 336.5 × 227.5 × 6 (H×V×D) | Bezel Area(mm): | 324.5 × 217.3 (H×V) |
| Luminance: | 150 (Typ.)(cd/m²) | Contrast Ratio: | 300 : 1 (Typ.) (TM) |
Product Description
15.2 inch B152EW01 1280x854 TFT LCD Panel Screen Display
Product details :
| AUO LCD SCREEN B152EW01 | |
| Panel Brand | AUO |
| Panel Model | B152EW01 |
| Panel Size | 15.2" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×854 101PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 320.7 × 213.9 (H×V) mm |
| Bezel Opening | 324.5 × 217.3 (H×V) mm |
| Outline Size | 336.5 × 227.5 × 6 (H×V×D) mm |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/50 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 50% NTSC |
| Lamp Type | 1 pcs CCFL , without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Signal Interface | LVDS (1 ch, 6-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 15.2 inch B152EW01 1280x854 TFT LCD Panel Screen Display | |
