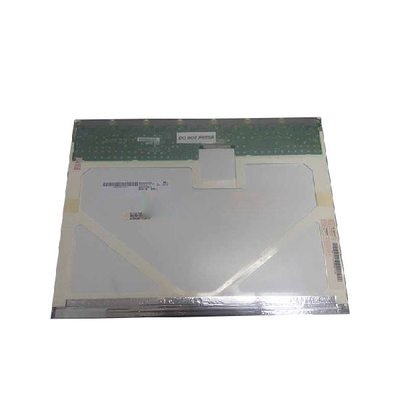

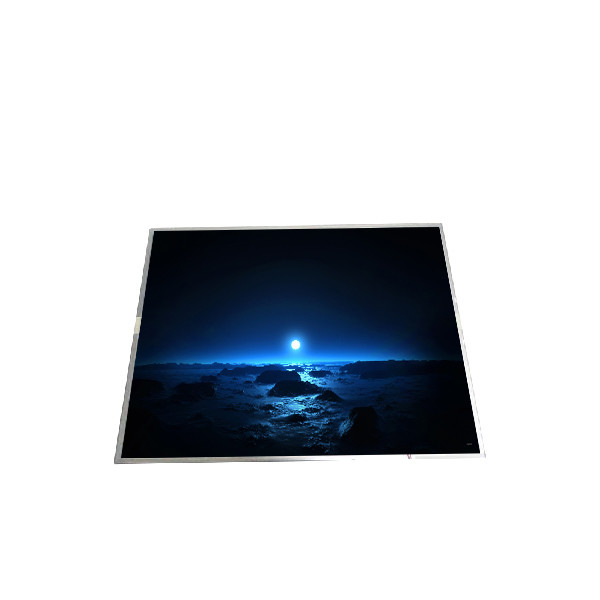

B150PH01 15 inch 1400×1050 LCD touch screen LCD display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B150PH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B150PH01 | Screen Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Number: | 1400(RGB)×1050 (SXGA+) 116PPI | Active Area(mm): | 304.5 × 228.375 (H×V) |
| Outline Shape: | Wedge (PCBA Bent, T≥5.2mm) | Color Depth: | 262K |
| Used For: | Laptop | Signal Type: | LVDS (2 Ch, 6-bit) |
Product Description
B150PH01 15 inch 1400×1050 LCD touch screen LCD display Module
Product details :
AU Optronics Corp. (hereafter called AUO) B150PH01 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system. B150PH01 supports display 1400(RGB)×1050 (SXGA+) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.5(W)×228.375(H) mm, shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, B150PH01 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted CCFL as it's backlight systerm. B150PH01 utilizes LVDS (2 ch, 6-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.
| AUO LCD SCREEN B150PH01 | |
| manufacturer | AUO |
| Model Name | B150PH01 |
| screen size | 15.0 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1400(RGB)×1050 (SXGA+) 116PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.5 × 228.375 (H×V) |
| Optical mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Backlight type | CCFL |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Apply to | Laptop |
| Refresh rate | 60Hz |
| signal system | LVDS (2 ch, 6-bit) |
| B150PH01 15 inch 1400×1050 LCD touch screen LCD display Module | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of B150PH01 ?
A: 90days warranty .
Q: How can I trace my order of AUO B150PH01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B150PH01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B150PH01 ?
A: Of course!If you make a large order, we will give you a discount.
