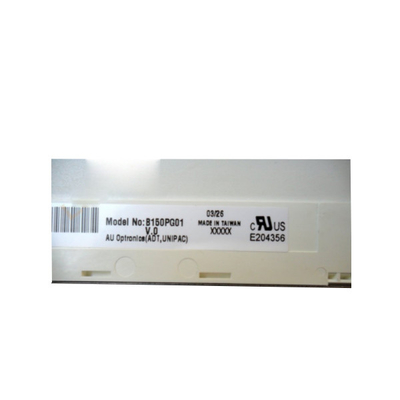

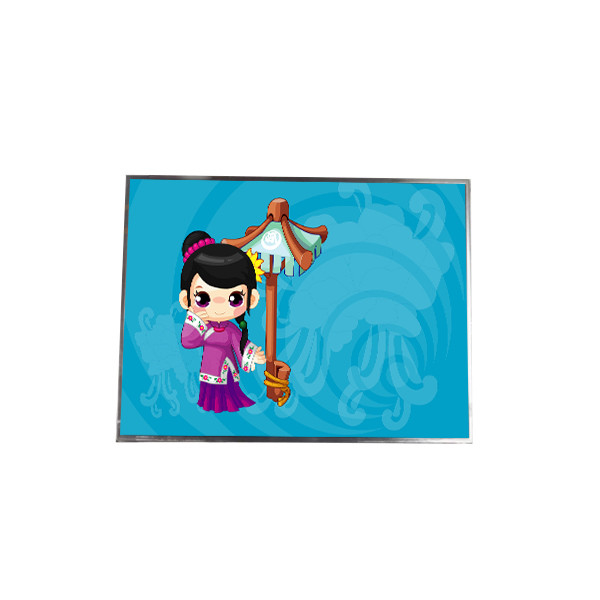

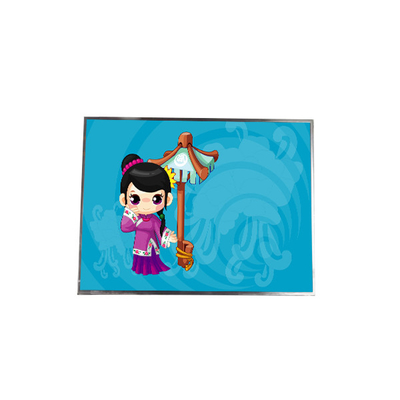

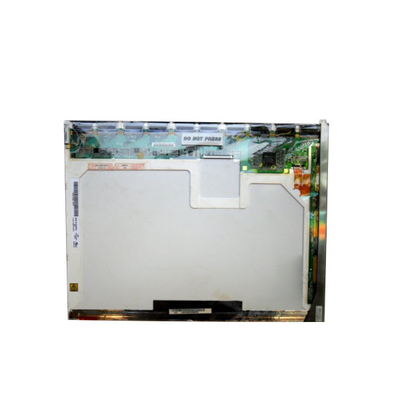

1400×1050 LCD Laptop Screen B150PG01 V0 lcd panel
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B150PG01 V0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B150PG01 V0 (AUO0F03) | Screen Size: | 15.0 Inch |
---|---|---|---|
Pixel Number: | 1400(RGB)×1050 (SXGA+) 116PPI | Active Area(mm): | 304.5 × 228.375 (H×V) |
Outline(mm): | 317.3 × 242 × 6 (H×V×D) | Bezel Opening: | 308.1 × 232.0 (H×V) |
Luminance: | 150 Cd/m² (Typ.) | Contrast Ratio: | 250:1 (Typ.) (TM) |
Product Description
1400×1050 LCD Laptop Screen B150PG01 V0 lcd panel
Product details :
AUO LCD SCREEN B150PG01 V0 (AUO0F03) | |
Panel Brand | AUO |
Panel Model | B150PG01 V0 (AUO0F03) |
Panel Size | 15.0" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1400(RGB)×1050 SXGA+ 116PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 304.5(H)×228.375(V) mm |
Bezel Opening | 308.1(H)×232.0(V) mm |
Outline Size | 317.3(H)×242(V)×6(D) mm |
Brightness | 150 cd/m² (Typ.) |
Contrast Ratio | 250:1 (Typ.) (TM) |
Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 15/35 (Typ.)(Tr/Td) ms |
Display Colors | 262K , 45% NTSC |
Lamp Type | CCFL [1 pcs] , no driver |
Frequency | 60Hz |
Touch Screen | Without |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Signal Interface | 30 pins LVDS (1 ch, 6-bit) , terminal |
Input Voltage | 3.3V (Typ.) |
Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
1400×1050 LCD Laptop Screen B150PG01 V0 lcd panel |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
We will ship it to you within 1-5 business days after payment.
Some of the items we offer are free shipping via Hong Kong/China Post, if you need it soon, please contact us via email and deal.
China Post Standard Shipping Time
It takes about 10-25 business days for most US/UK/Australia destinations. Please read before buying.
FAQ:
Q: How can I trace my order of B150PG01 V0 (AUO0F03) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B150PG01 V0 (AUO0F03) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B150PG01 V0 (AUO0F03) ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
