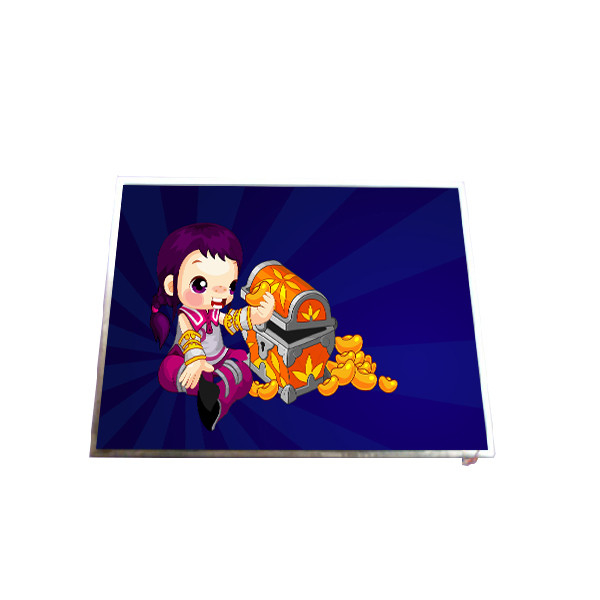

14.1 inch 1024×768 B141XG03 touch screen LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B141XG03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B141XG03 | Screen Size: | 14.1 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768 [XGA] 91PPI | Active Area(mm): | 285.696(H)×214.272(V) Mm |
| Outline(mm): | 299(H)×228(V) ×6(D) Mm | Bezel Opening: | 289.8(H)×218.5(V) Mm |
| Luminance: | 150 Cd/m² (Typ.) | Contrast Ratio: | 200:1 (Typ.) (TM) |
Product Description
14.1 inch 1024×768 B141XG03 touch screen LCD display TFT Module
Product details :
| AUO LCD SCREEN B141XG03 | |
| Panel Brand | AUO |
| Panel Model | B141XG03 |
| Panel Size | 14.1" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768 [XGA] 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 285.696(H)×214.272(V) mm |
| Bezel Opening | 289.8(H)×218.5(V) mm |
| Outline Size | 299(H)×228(V) ×6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Viewing Angle | 40/40/15/35 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/30 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 52% NTSC |
| Lamp Type | CCFL [1 pcs] , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Signal Interface | 20 pins LVDS (1 ch, 6-bit) , Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| 14.1 inch 1024×768 B141XG03 touch screen LCD display TFT Module | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Packing: Anti-static bag and box
Each piece is strictly tested before shipment!
Important:
A specific laptop model may come in a variety of sizes and resolutions. Notebook LCD screen resolutions should not be scaled up or down. You must confirm that this screen matches your laptop size and resolution before purchasing! No returns due to improper installation or incompatibility
FAQ:
Q: Can You declare my order of B141XG03 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of B141XG03 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods B141XG03 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of B141XG03 ?
A: We accept T/T , Paypal , western union .
