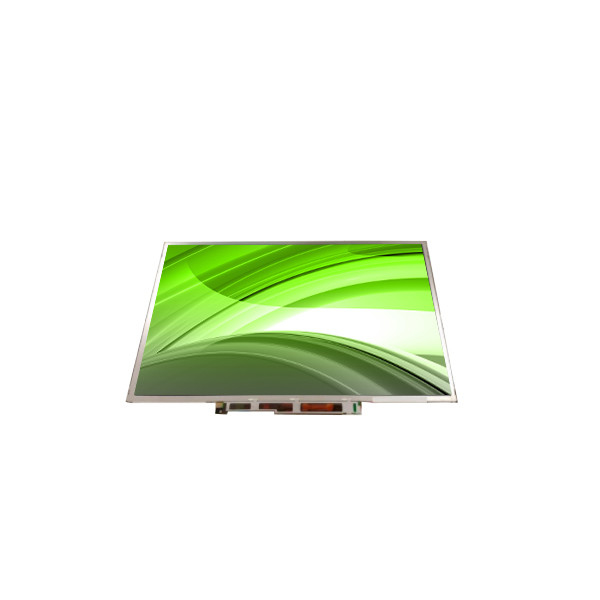

14.1 inch lcd display B141PN01 for LCD Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B141PN01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B141PN01 | Screen Size: | 14.1 Inch |
|---|---|---|---|
| Pixel Number: | 1400(RGB)×1050, SXGA+, 124PPI | Active Area(mm): | 285.6(W)×214.2(H) Mm |
| Outline(mm): | 298.5(W)×226.7(H) ×5.5(D) Mm | Bezel Opening: | 290.0(W)×218.6(H) Mm |
| Luminance: | 150 Cd/m² (Typ.) | Contrast Ratio: | 250:1 (Typ.) (TM) |
Product Description
14.1 inch lcd display B141PN01 for LCD Laptop Screen
Product details :
| AUO LCD SCREEN B141PN01 | |
| Panel Brand | AUO |
| Panel Model | B141PN01 |
| Panel Size | 14.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1400(RGB)×1050 SXGA+ 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 285.6(W)×214.2(H) mm |
| Bezel Opening | 290.0(W)×218.6(H) mm |
| Outline Size | 298.5(W)×226.7(H) ×5.5(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (Transmission) |
| Viewing Angle | 40/40/10/30 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/30 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 1 pcs CCFL , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | 30 pins LVDS (2 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 14.1 inch lcd display B141PN01 for LCD Laptop Screen | |
Note: Before ordering, if there are any errors and problems with our business, please send us the following information for double confirmation to win this deal together.
• 1 --> the model name of your current LCD monitor, eg: LP140WH1-TLA1
• 2 --> the name of your laptop, eg: DV3000 …
• 3 --> Send the above information to our courier, we will reply you within 24 hours for fast and correct business, thank you!
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Do you accept sample orders of B141PN01 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of B141PN01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of B141PN01 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of B141PN01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
