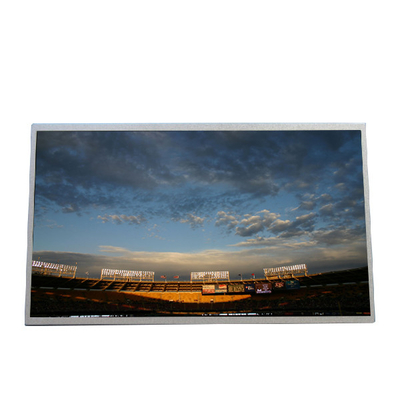

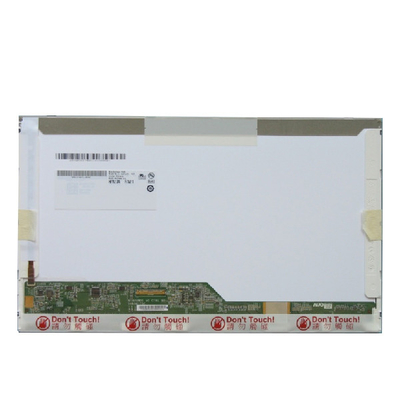

B140XW01 V0 1366(RGB)×768 14.0 inch LED laptop lcd screen B140XW01 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140XW01 V0 (AUO103C) | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 [WXGA] 112PPI | Active Area(mm): | 309.399(W)×173.952(H) Mm |
| Outline(mm): | 323.5(W)×192(H) ×5.2(D) Mm | Bezel Opening: | 312.40(W)×176.95(H) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
B140XW01 V0 1366(RGB)×768 14.0 inch LED laptop lcd screen B140XW01 V0
Product details :
| AUO LCD SCREEN B140XW01 V0 (AUO103C) | |
| manufacturer | AUO |
| Model Name | B140XW01 V0 (AUO103C) |
| screen size | 14.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1366(RGB)×768 WXGA 112PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 309.399(W)×173.952(H) mm |
| physical dimension | 323.5(Horizontal)×192(Vertical) ×5.2(Thick) mm |
| Visual size | 312.40(Horizontal)×176.95(Vertical) mm |
| Surface treatment | Mirror (Haze 0%), Hard coating (3H) |
| Display brightness | 220 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best perspective | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 8 (Typ.)(Tr+Td) ms |
| Number of | 262K , 60% NTSC |
| Backlight type | WLED , 10K hours , With LED Driver |
| Screen weight | Thick screen (PCBA bending, thickness ≥5.2mm) |
| Apply to | notebook |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | 40 pins , LVDS (1 ch, 6-bit) , connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| B140XW01 V0 1366(RGB)×768 14.0 inch LED laptop lcd screen B140XW01 V0 | |
Notice:
Before placing an order, please check and confirm the screen size, resolution, backlight type, interface type and location that your laptop can apply, if you don't know, please feel free to ask us.
Please provide your correct contact information so that you can receive the goods as soon as possible.
If you would like us to avoid tariffs at a low price, please let us know at your own risk.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods of B140XW01 V0 (AUO103C) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of AUO B140XW01 V0 (AUO103C) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for B140XW01 V0 (AUO103C) ?
A: Of course!sample order is welcome !
Q: If I order AUO B140XW01 V0 (AUO103C) now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
