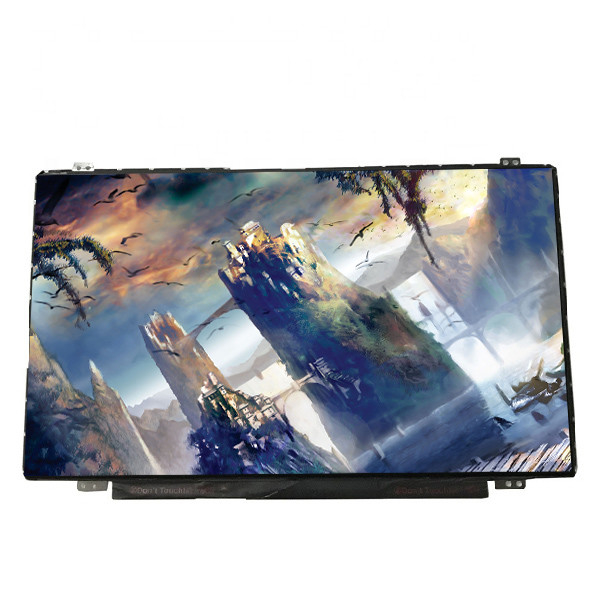

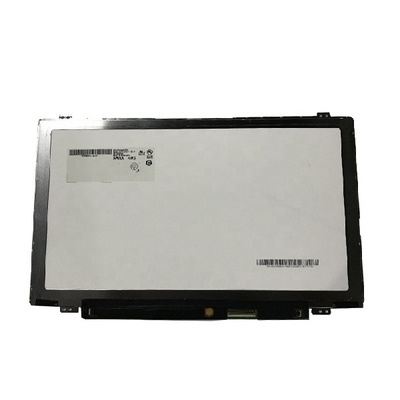

Notebook panel B140XTT01.1 Laptop LCD Touch Screen With Touch Glass Assembly

Notebook panel B140XTT01.1 Laptop LCD Touch Screen With Touch Glass Assembly

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: B140XTT01.1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: B140XTT01.1 (AUO113C) Screen Size: 14.0 Inch
Pixel Number: 1366(RGB)×768 [WXGA] 112PPI Active Area(mm): 309.399(H)×173.952(V) Mm
Outline(mm): 329.58(H)×205.1(V) ×5.3(D) Mm Touch Panel: PCAP, Optical Bonding
Brightness: 200 Cd/m² (Typ.) Contrast Ratio: 500:1 (Typ.) (TM)

Product Description

Notebook panel B140XTT01.1 Laptop LCD Touch Screen With Touch Glass Assembly





Product details :

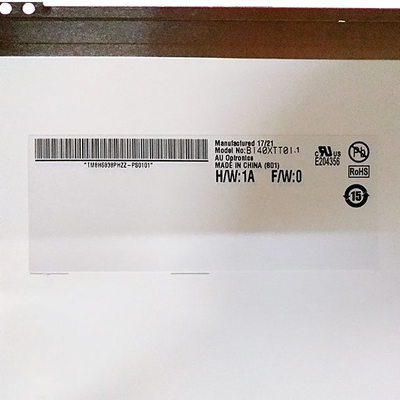

AUO LCD SCREEN B140XTT01.1 (AUO113C)
Panel Brand AUO
Panel Model B140XTT01.1 (AUO113C)
Panel Size 14.0"
Panel Type a-Si TFT-LCD , LCM
Resolution 1366(RGB)×768 WXGA 112PPI
Pixel Format RGB Vertical Stripe
Display Area 309.399(h)×173.952(v) mm
Outline Size 329.58 (h) × 205.1(v) × 5.3 (d) mm
Surface Hard coating (7H)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (Transmission)
Viewing Angle 45/45/15/35 (Typ.) (CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 8 (Typ.)(Tr+Td) ms
Display Colors 262K , 45% NTSC
Lamp Type WLED , 15K hours, with LED driver
Frequency 60Hz
Touch Screen PCAP, Optical Bonding
Form Style Flat (PCBA Flat, T3.4~4.0mm)
Designed For Laptop

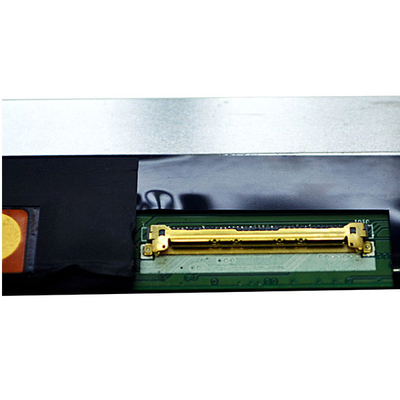

Signal Interface eDP (1 Lane) , eDP1.2 , terminal, 40 pins
Input Voltage 3.3V (Typ.)
Environment Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
Notebook panel B140XTT01.1 Laptop LCD Touch Screen With Touch Glass Assembly

Notice:



Please note that if the item is out of stock, we will send you a generic model number.
If you need the same model as the LCD panel, please contact us to confirm if we have it in stock



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :





Notebook panel B140XTT01.1 Laptop LCD Touch Screen With Touch Glass Assembly 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ:

Q: Do you accept sample orders of B140XTT01.1 (AUO113C) ?

A: Of course!sample order is welcome !



Q: How long will I receive my goods B140XTT01.1 (AUO113C) ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.



Q: Can I pay my order of B140XTT01.1 (AUO113C) via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: How long is the warranty ?

A: We offer 90days warranty .
