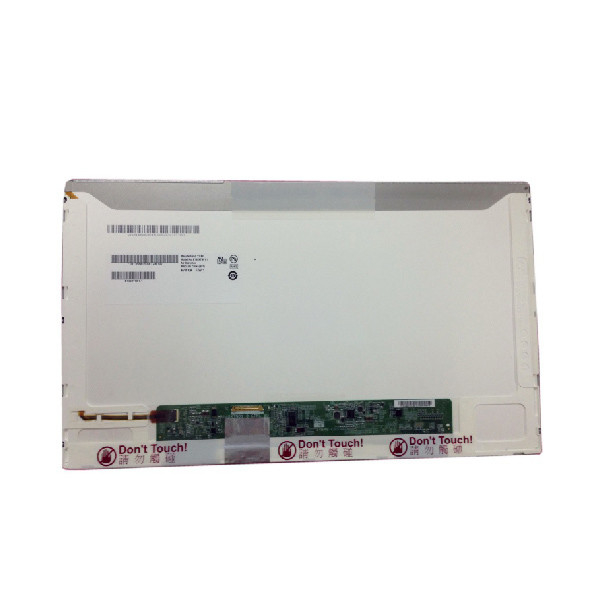

14.0 inch LED LCD screen 30 PIN B140XTN01.0 1366*768 LCD Laptop Screen
Product Details:
Place of Origin: | China |
Brand Name: | AUO |
Model Number: | B140XTN01.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | B140XTN01.0 (AUO103C) | Screen Size: | 14.0 Inch |
---|---|---|---|
Pixel Number: | 1366(RGB)×768 [WXGA] 112PPI | Active Area(mm): | 309.399(H)×173.952(V) Mm |
Outline(mm): | 323.5(W)×192(H) ×5.2(D) Mm | Bezel Opening: | 312.40(W)×176.95(H) Mm |
Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
14.0 inch LED LCD screen 30 PIN B140XTN01.0 1366*768 LCD Laptop Screen
Product details :
AUO LCD SCREEN B140XTN01.0 (AUO103C) | |
Panel Brand | AUO |
Panel Model | B140XTN01.0 (AUO103C) |
Panel Size | 14.0" |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1366(RGB)×768, WXGA, 112PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 309.399(W)×173.952(H) mm |
Bezel Opening | 312.40(W)×176.95(H) mm |
Outline Size | 323.5(W)×192(H) ×5.2(D) mm |
Surface | Glare (Haze 0%), Hard coating (3H) |
Brightness | 200 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (Transmission) |
Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 8(Typ.)(Tr/Td) ms |
Display Colors | 262K , 45% NTSC |
Lamp Type | WLED , 10K hours, with LED driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Application | Laptop |
Signal Interface | eDP (1 Lane) , terminal, 30 pins |
Input Voltage | 3.3V (Typ.) |
Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
14.0 inch LED LCD screen 30 PIN B140XTN01.0 1366*768 LCD Laptop Screen |
Notice:
1. Please test before installation.
2. The LCD screen is fragile, and it is easy to be damaged or malfunctioned by wrong installation.
3. If the LCD screen cannot be replaced, please go to a professional or repair shop to replace it.
4. We are not responsible for installation errors.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of B140XTN01.0 (AUO103C) ?
A: 90days warranty .
Q: How can I trace my order of AUO B140XTN01.0 (AUO103C) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B140XTN01.0 (AUO103C) by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods AUO B140XTN01.0 (AUO103C) ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
