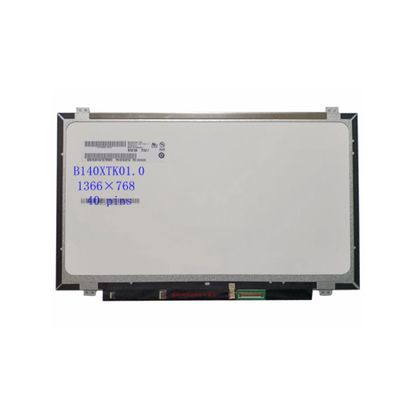

B140XTK01.0 touch screen 14.0 inch 1366x768 slim 40pin laptop lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140XTK01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140XTK01.0 (AUO103C) | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 [WXGA] 112PPI | Active Area(mm): | 309.399(H)×173.952(V) Mm |
| Outline(mm): | 320.4(H)×205.1(V) ×3.2(D) Mm | Touch Panel: | On-Cell Touch |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
B140XTK01.0 touch screen 14.0 inch 1366x768 slim 40pin laptop lcd screen
Product details :
| AUO LCD SCREEN B140XTK01.0 (AUO103C) | |
| manufacturer | AUO |
| Model Name | B140XTK01.0 (AUO103C) |
| screen size | 14.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1366(RGB)×768 WXGA 112PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 309.399(H)×173.952(V) mm |
| physical | 320.4(H)×205.1(V) ×3.2(D) mm |
| Surface | Mirror (Haze 0%), Hard coating (3H) |
| Brightness | 200 (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 8 (Typ.)(G to G) ms |
| Number of | 262K , 45% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Screen weight | Thin screen (PCBA straight, thickness ≤3.2mm) |
| Apply to | notebook |
| Refresh rate | 60Hz |
| Touch function | On-Cell Touch |
| Interface Type | 40 pins eDP (1 Lane), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| B140XTK01.0 touch screen 14.0 inch 1366x768 slim 40pin laptop lcd screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Remind:
1. Please confirm the brand and model before purchasing, so as not to bring you unnecessary trouble!
2. If you need more quantity, please contact us, we will help you arrange a larger quantity.
3. Make sure your address is correct (full name recommended). We are not responsible for incorrect or undeliverable addresses.
4. We are not responsible for possible additional import duties,
Remote area fees, taxes and other customs related charges.
5. If you have payment problems, please contact us.
FAQ:
Q: How can I trace my order of B140XTK01.0 (AUO103C) ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B140XTK01.0 (AUO103C) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B140XTK01.0 (AUO103C) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
