LCD Laptop Screen

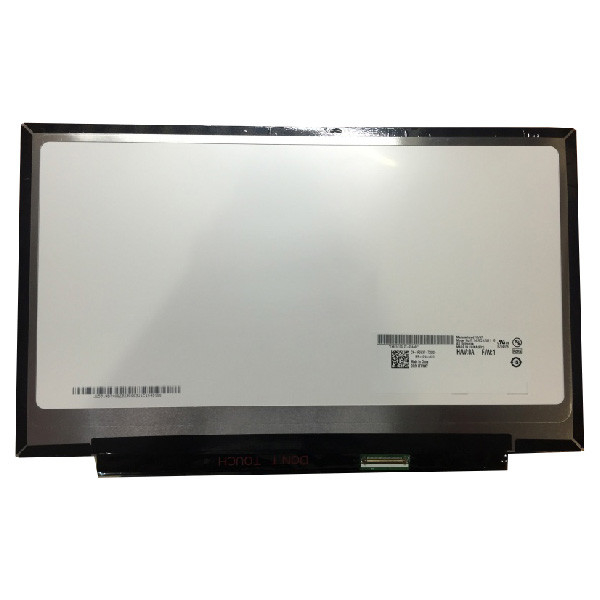

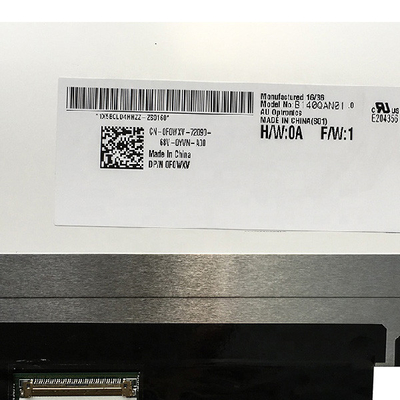

14.0 inch Lcd Touch Screen B140QAN01.0 Assembly For Dell E7470 E7480 Half Part

All Category

Floor Standing Digital Signage

14.0 inch Lcd Touch Screen B140QAN01.0 Assembly For Dell E7470 E7480 Half Part

Brand Name:	AUO
Model Number:	B140QAN01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B140QAN01.0 (AUO1036)

Screen Size:

14.0 Inch

Pixel Number:

2560(RGB)×1440 (Quad-HD) 210PPI

Active Area(mm):

309.35 × 174.01 (H×V)

Outline(mm):

320.4 × 198.6 × 2.6 (H×V×D)

Luminance:

340 (Typ.)(cd/m²)

Contrast Ratio:

700 : 1 (Typ.) (TM)

Used For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

14.0 inch Lcd Touch Screen B140QAN01.0 Assembly For Dell E7470 E7480 Half Part

Product details :

AUO LCD SCREEN B140QAN01.0 (AUO1036)
manufacturer	AUO
Model Name	B140QAN01.0 (AUO1036)
screen size	14.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	2560(RGB)×1440 (Quad-HD) 210PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	309.35 × 174.01 (H×V)
Outline(mm)	320.4 × 198.6 × 2.6 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	340 (Typ.)(cd/m²)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Work Mode	AHVA, Normally Black, Transmissive
Good View at	Symmetry
Response	25 (Typ.)(Tr+Td) ms
Color Depth	16.7M 72% NTSC
Backlight	WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (4 Lanes) , eDP1.3 , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
14.0 inch Lcd Touch Screen B140QAN01.0 Assembly For Dell E7470 E7480 Half Part

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

14.0 inch Lcd Touch Screen B140QAN01.0 Assembly For Dell E7470 E7480 Half Part 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

About transportation:

* We will ship within 1-2 business days after your payment. We only ship according to the shipping address. If you need to change the delivery address, please contact me in advance.

* We will use the fastest shipping service based on the shipping cost you pay. Shipping time is usually 7-30 days and may vary by country. Delivered to most European, American and Asian countries within 7-15 days. Up to 30-45 days to other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)

FAQ:

Q: How long is the warranty of B140QAN01.0 (AUO1036) ?

A: 90days warranty .

Q: How can I trace my order of AUO B140QAN01.0 (AUO1036) ?

A: we will give you tracking number then you can trace your order from website.

Q: If I order B140QAN01.0 (AUO1036) now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for B140QAN01.0 (AUO1036) ?

A: Of course!sample order is welcome !
