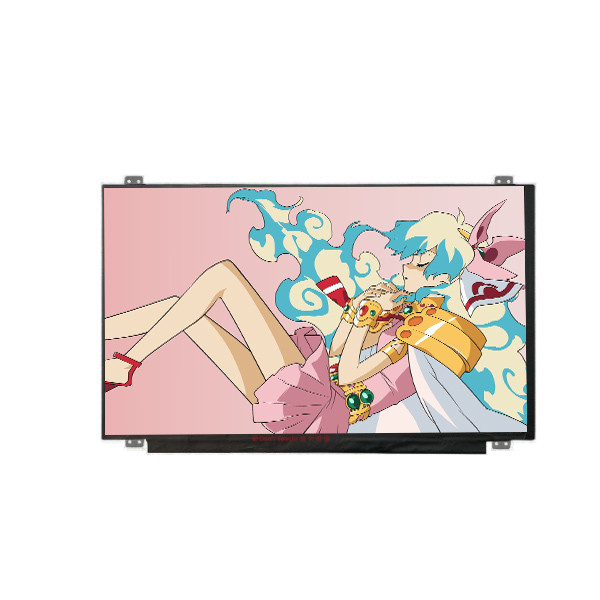

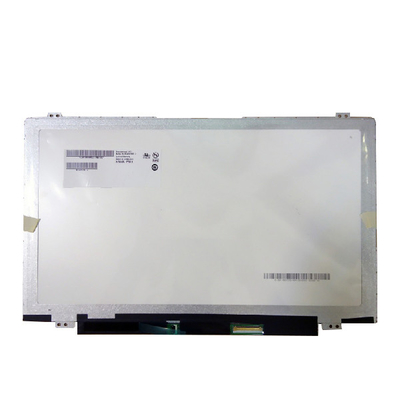

B140HTN01.3 for Lenovo 14.0 inch slim 30 pin FHD IPS laptop screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140HTN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140HTN01.3 | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 [FHD] 157PPI | Display Area: | 309.14(H)×173.89(V) Mm |
| Outline Size: | 320.4(H)×205.1(V) ×3(D) Mm | Form Style: | Slim (PCBA Flat, T≤3.2mm) |
| Brightness: | 300 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
B140HTN01.3 for Lenovo 14.0 inch slim 30 pin FHD IPS laptop screen
Product details :
| AUO LCD SCREEN B140HTN01.3 | |
| manufacturer | AUO |
| Model Name | B140HTN01.3 |
| screen size | 14.0 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB)×1080 FHD 157PPI |
| Pixel arrangement | RGB Vertical Stripe |
| Display size | 309.14(W)×173.89(H) mm |
| physical | 320.4 × 205.1 × 3 mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 500: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding | 8 (Typ.)(Tr+Td) ms |
| Number of | 262K , 60% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Screen weight | Thin screen (PCBA straight, thickness ≤3.2mm) |
| Apply to | notebook |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| B140HTN01.3 for Lenovo 14.0 inch slim 30 pin FHD IPS laptop screen | |
Feature:
1. Best quality LCD touch screen spare parts.
2. Reasonable and competitive price.
3. For repairing screen faults, touch screen problems, dead pixels, broken touch screen, broken, etc.
4. Each set is tested before shipment, 100% working normally; Quality Control: All are tested before delivery, without any black spots, color spots, transaction pixels.
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of B140HTN01.3 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of B140HTN01.3 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of B140HTN01.3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of B140HTN01.3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
