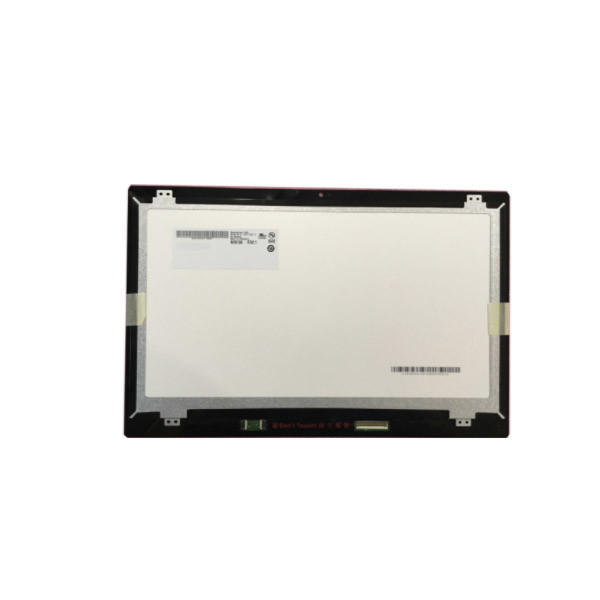

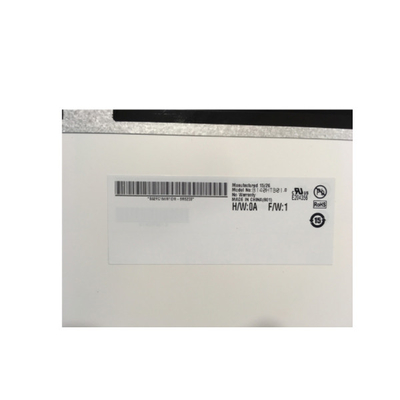

B140HTB01.0 LCD Panel Screen Assembly 14.0 Inch Laptop Screen 1920*1080 FHD
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140HTB01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140HTB01.0 (AUO103D) | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Display Area: | 309.14(W)×173.89(H) Mm |
| Outline Size: | 330.4(W)×214.25(H) ×4.2(D) Mm | Touch Panel: | On-Cell Touch |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
Product Description
B140HTB01.0 LCD Panel Screen Assembly 14.0 Inch Laptop Screen 1920*1080 FHD
Product details :
| AUO LCD SCREEN B140HTB01.0 (AUO103D) | |
| Panel Brand | AUO |
| Panel Model | B140HTB01.0 (AUO103D) |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD , Assembly |
| Resolution | 1920(RGB)×1080 FHD 157PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.14(H)×173.89(V) mm |
| Outline Size | 330.4(W)×214.25(H)×4.2(D) mm |
| Surface | Hard coating (7H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Best View on | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch |
| Designed For | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| B140HTB01.0 LCD Panel Screen Assembly 14.0 Inch Laptop Screen 1920*1080 FHD | |
