• 14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171
  • 14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171
  • 14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171
14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171

14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: B140HAK01.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: B140HAK01.0 (AUO103D) Screen Size: 14.0 Inch
Resolution: 1920(RGB)×1080, FHD, 157PPI Display Area: 309.14(W)×173.89(H) Mm
Outline Size: 320.4(W)×205.1(H) ×3(D) Mm Touch Screen: On-Cell Touch
Brightness: 250 Cd/m² (Typ.) Contrast Ratio: 700:1 (Typ.) (TM)

Product Description

14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171





Product details :

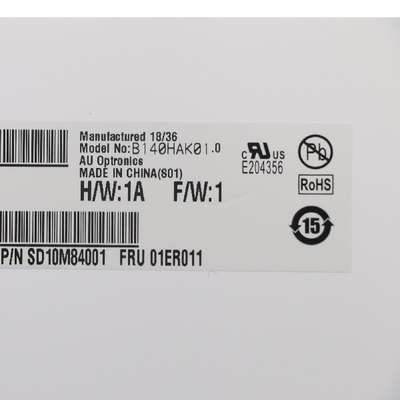

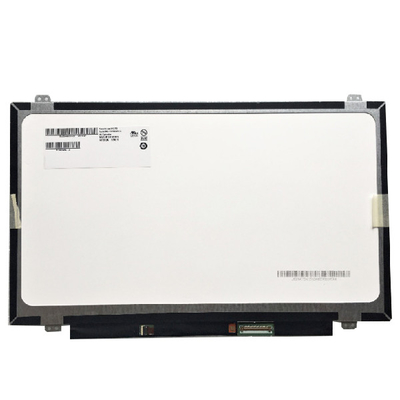

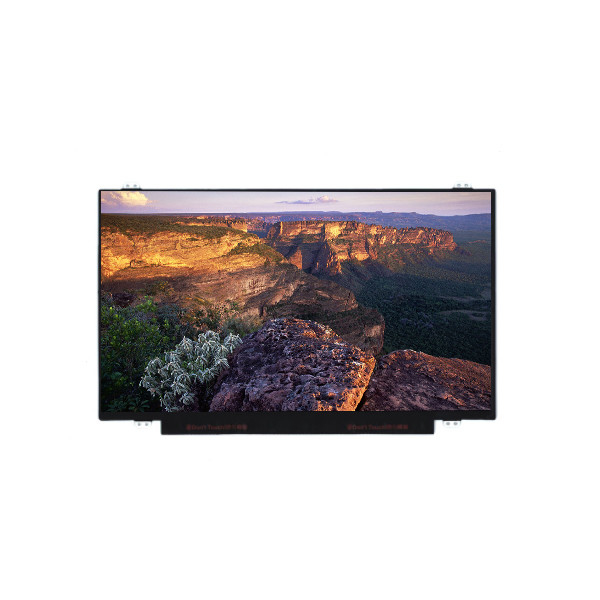

AUO LCD SCREEN B140HAK01.0 (AUO103D)
manufacturer AUO
Model Name B140HAK01.0 (AUO103D)
screen size 14.0 inches
Screen type a-Si TFT-LCD, LCD module
Resolution 1920(RGB)×1080 [FHD] 157PPI
Pixel arrangement RGB Vertical Stripe
Display size 309.14 × 173.89 mm (H×V)
physical dimension 320.4 × 205.1 × 3 mm (H×V×D)
Surface treatment Antiglare
Display brightness 250 (Typ.)
Contrast 700: 1 (Typ.) [Transmission]
Best angle Symmetry
Optical mode AHVA, normally black display, transmissive
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
responding 30 (Typ.)(Tr+Td) ms
Number of Color 262K 45% NTSC
Backlight type WLED, 15K hours, with LED driver
Outline Shape Slim (PCBA Flat, T≤3.2mm)
Apply to Laptop
Refresh rate 60Hz
Touch function On-Cell Touch
signal system eDP (2 Lanes), eDP1.2, connector, 40 pins
Supply voltage 3.3V (Typ.)
Maximum Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C
14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171



Why Choose Us :





According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :





14.0 Inch Laptop LCD Panel Touch Screen Fhd 1920*1080 B140HAK01.0 Assembly For HP TPN-Q171 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



warn:



*Installation guide is not included, we are not responsible for any damage caused by installing this accessory, please make sure you know how to install before bidding, thank you for your understanding!

* We can only guarantee that the one you receive will be compatible with your tablet,

*If you do not accept A+ grade compatible touch screen digitizers with different cable numbers, please do not buy because our title/description/photo status is out of stock in the market, thank you!



FAQ:

Q: How long is the warranty of AUO B140HAK01.0 (AUO103D) ?

A: 90 days warranty .



Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.



Q: Can You declare my order of lcd panel AUO B140HAK01.0 (AUO103D) at a very low value ?

A: Yes , we can . pls inform us before shipping .



Q: How can I trace my order of B140HAK01.0 (AUO103D) ?

A: we will give you tracking number then you can trace your order form website.
