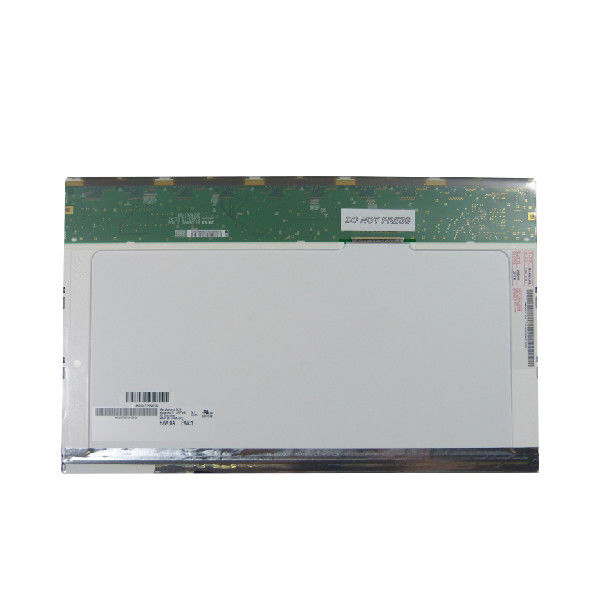

14.0 inch LCD Laptop Screen B140EW01 V0 1280×768 lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140EW01 V0 | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA, 106PPI | Display Area: | 305.28(W)×183.168(H) Mm |
| Outline Size: | 320(W)×199(H) ×5.7(D) Mm | Bezel Opening: | 308.68(W)×186.56(H) Mm |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 300:1 (Typ.) (TM) |
Product Description
14.0 inch LCD Laptop Screen B140EW01 V0 1280×768 lcd panel
Product details :
| AUO LCD SCREEN B140EW01 V0 | |
| Panel Brand | AUO |
| Panel Model | B140EW01 V0 |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×768 WXGA 106PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 305.28(h)×183.168(v) mm |
| Bezel Opening | 308.68(h)×186.56(v) mm |
| Outline Size | 320 (h) × 199 (v) × 5.7 (t) m |
| Surface | Matte (Haze 25%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/20/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 15/10 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 46% NTSC |
| Lamp Type | CCFL [1 pcs] , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | 30 pins LVDS (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| 14.0 inch LCD Laptop Screen B140EW01 V0 1280×768 lcd panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Customer opinion: (very important)
1. Please make sure your driver board works well before purchasing.
2. Because the computer monitor is really thin and expensive, please check it before receiving it, if there is any damage, please contact us as soon as possible and take a photo.
3. If you receive the monitor, please connect the driver board to test first, if everything is normal, you can replace the monitor.
4. Please confirm your device model and part number before purchasing.
5. If the part number and appearance are different, it means that our screen may not fit your computer.
6. Professional skills are required to replace the screen. Please note that we are not responsible for any damage caused by screen replacement.
7. We have customized boxes and packing materials to protect the screen, please don't worry.
thank you for your support!
FAQ:
Q: How to make payment of B140EW01 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of B140EW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B140EW01 V0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods B140EW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
