Name: 13.3 Inch Laptop LCD Panel IPS eDP 40Pin 3840*2160 4K Screen B133ZAN01.0
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B133ZAN01.0
Availability: InStock

Brand Name:	AUO
Model Number:	B133ZAN01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B133ZAN01.0

Screen Size:

13.3 Inch

Resolution:

3840(RGB)×2160, UHD, 332PPI

Display Area:

293.76(W)×165.24(H) Mm

Outline Size:

298.96(W)×176.19(H) ×4.71(D) Mm

Shape Style:

Slim (PCBA Bent, T≤3.0mm)

Brightness:

400 Cd/m² (Typ.)

Contrast Ratio:

1800:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

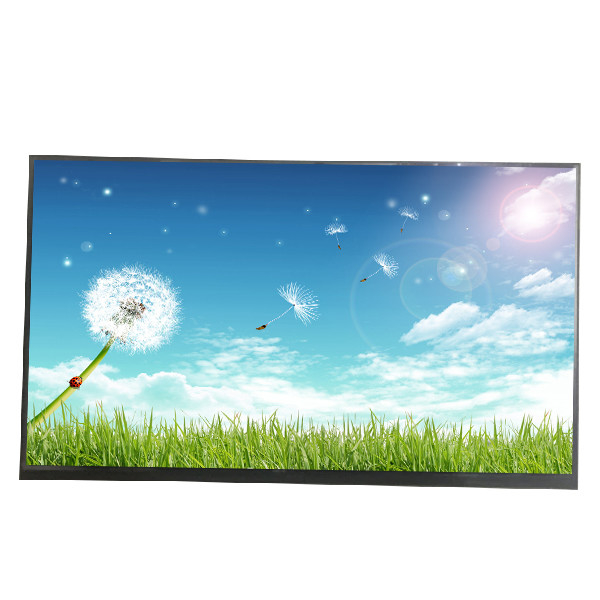

13.3 Inch Laptop LCD Panel IPS eDP 40Pin 3840*2160 4K Screen B133ZAN01.0

Product details :

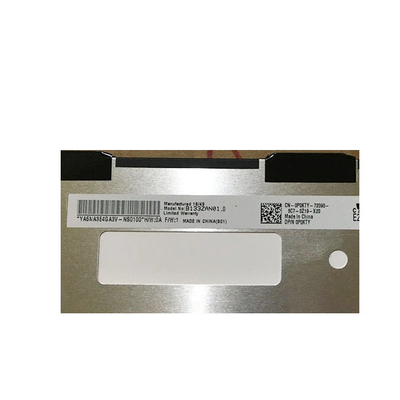

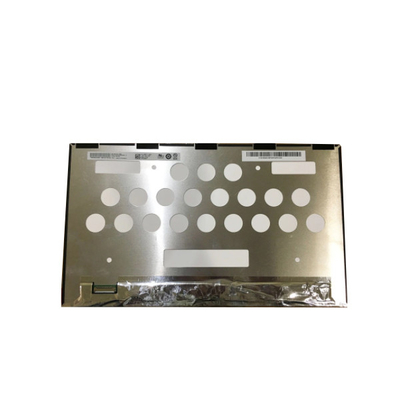

AUO LCD SCREEN B133ZAN01.0
manufacturer	AUO
Model Name	B133ZAN01.0
screen size	13.3 inches
Screen type	LTPS TFT-LCD, LCD module
Resolution	3840(RGB)×2160, UHD, 332PPI
Pixel arrangement	RGB Vertical Stripe
Display size	293.76(W)×165.24(H) mm
physical	298.96 × 176.19 × 4.71 mm (H×V×D)
Surface	Mirror (Haze 0%)
Brightness	400 (Typ.)
Contrast	1800: 1 (Typ.) [Transmission]
Best angle	Symmetry
Optical mode	AHVA, normally black display, transmissive
Viewing angle	85/85/85/85 (Typ.)(CR≥10)
responding	30 (Typ.)(Tr+Td) ms
Number of	16.7M , 72% NTSC
Backlight type	WLED, with LED driver
Screen weight	Slim (PCBA Bent, T≤3.0mm)
Apply to	Laptop
Refresh rate	60Hz
Touch function	No touch
signal system	eDP (4 Lanes), eDP1.3, connector, 40 pins
Supply voltage	3.3V (Typ.)
Maximum	Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C
13.3 Inch Laptop LCD Panel IPS eDP 40Pin 3840*2160 4K Screen B133ZAN01.0

Notice:

Please note that all our screens have protective film, please be sure to tear off the protective film before replacing the screen, thank you!

All our screens are tested 100% OK before shipping.

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

13.3 Inch Laptop LCD Panel IPS eDP 40Pin 3840*2160 4K Screen B133ZAN01.0 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: Do you accept sample orders of B133ZAN01.0 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of B133ZAN01.0 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of B133ZAN01.0 ?

A: The order will be shipped within 2-3 working days after received your payment.
