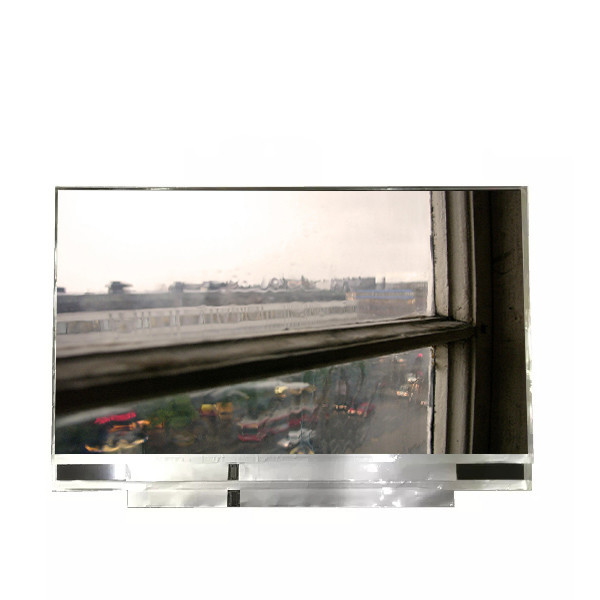

AUO 13.3 inch B133XN02 V5 LCD Screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133XN02 V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133XN02 V5 | Screen Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 96PPI | Display Area: | 270.336(W)×202.752(H) Mm |
| Outline Size: | 284(W)×214.5(H) ×5.9(D) Mm | Bezel Opening: | 275.6(W)×208.1(H) Mm |
| Brightness: | 130 Cd/m² (Typ.) | Contrast Ratio: | 200:1 (Typ.) (TM) |
Product Description
AUO 13.3 inch B133XN02 V5 LCD Screen panel
Product details :
| AUO LCD SCREEN B133XN02 V5 | |
| Panel Brand | AUO |
| Panel Model | B133XN02 V5 |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768 XGA 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 270.336(h)×202.752(v) |
| Bezel Opening | 275.6(h)×208.1(v) mm |
| Outline Size | 284 (h) × 214.5 (v) × 5.9 (t) mm |
| Surface | Matte (Haze 12%), Hard coating (3H) |
| Brightness | 130 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (Transmission) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 20/30 (Typ.)(Tr/Td) ms |
| Display Colors | 262K 52% NTSC |
| Lamp Type | CCFL [1 pcs] , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO 13.3 inch B133XN02 V5 LCD Screen panel | |
Note: For fragile glass products, please open the package and check the package receipt. If it is damaged, please refuse to sign for it. If the receipt is successful, it will be the complete default product. If it is damaged in the next days, I will not be responsible for it. Thank you
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of B133XN02 V5 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of B133XN02 V5?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of B133XN02 V5 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
