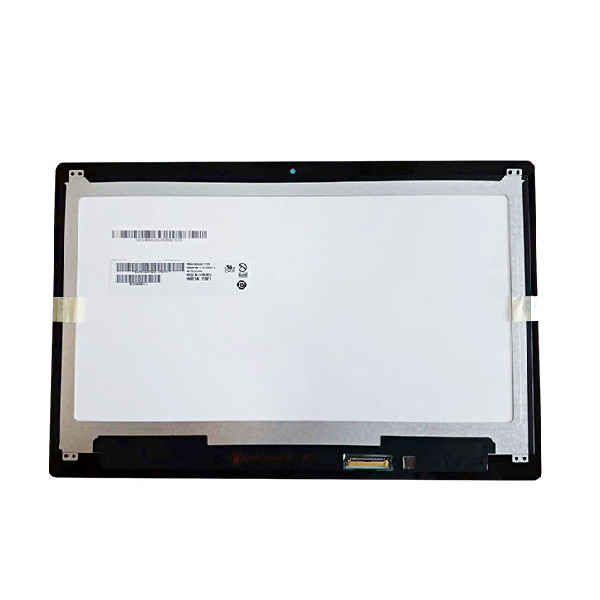

Brand New AUO B133HAB01.0 HW0A 13.3 inch laptop lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B133EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B133HAB01.0 HW0A (AUO102D) | Screen Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 [FHD] 166PPI | Display Area: | 293.472(H)×165.078(V) Mm |
| Outline Size: | 317(H)×208(V) ×4.2(D) Mm | Treatment: | Anti-Scatter, Hard Coating (7H) |
| Brightness: | 220 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
Product Description
Brand New AUO B133HAB01.0 HW0A 13.3 inch laptop lcd screen
Product details :
B133HAB01.0 HW0A supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.472(W)×165.078(H) mm, outline size of 317(W)×208(H)×4.2(D) mm, with surface treament of Anti-Scatter, Hard coating (7H), net weight of 400g (Max.). As a AHVA, Normally Black, Transmissive Assembly product, B133HAB01.0 HW0A can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B133HAB01.0 HW0A utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| IVO LCD SCREEN B133HAB01.0 HW0A (AUO102D) | |
| Panel Brand | AUO |
| Panel Model | B133HAB01.0 HW0A (AUO102D) |
| Panel Size | 13.3" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.472(W)×165.078(H) mm |
| Outline Size | 317(W)×208(H)×4.2(D) mm |
| Surface | Anti-scatter (AS), Hard coating (7H) |
| Brightness | 220 (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry- |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| Brand New AUO B133HAB01.0 HW0A 13.3 inch laptop lcd screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long will I receive my goods of AUO B133HAB01.0 HW0A (AUO102D) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for B133HAB01.0 HW0A (AUO102D) ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of lcd panel glass B133HAB01.0 HW0A (AUO102D) at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of AUO B133HAB01.0 HW0A (AUO102D) ?
A: we will give you tracking number then you can trace your order form website.
